Eco-solvent
Primarily used for advertising signage, packaging design, electronic component labeling, automotive interiors, home decor, and personalized customization. Extensively applicable to surface decoration for mobile phone cases, appliance panels, ceramic tiles, acrylic signage, glass curtain walls, and metal nameplates.
- Overview
- Product Showcase
- Product Description
- Product Details Display
- Products Applications
- ABOUT US
- Recommended Products
Parameters

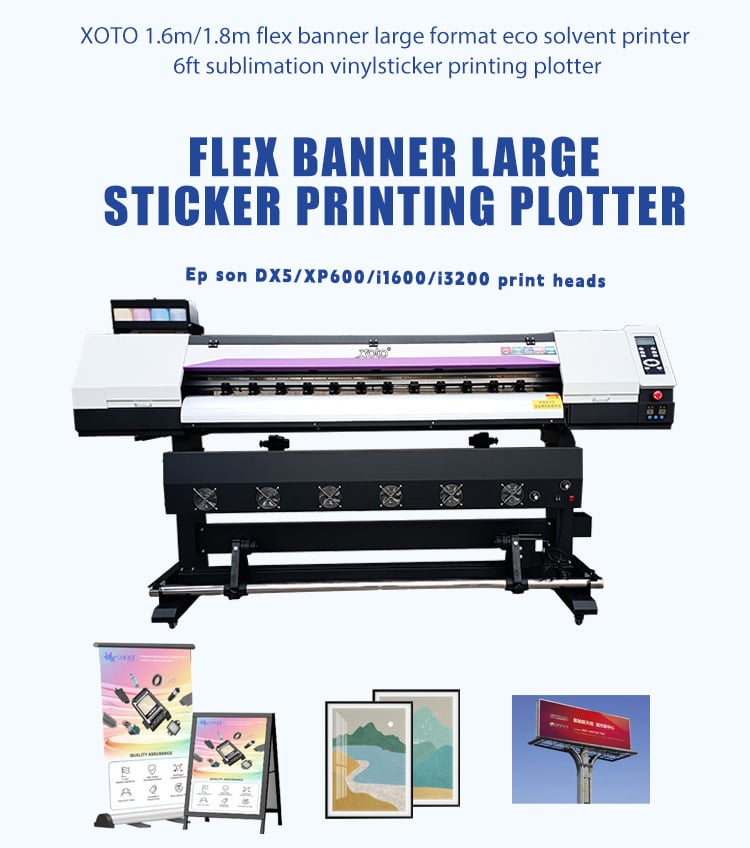

The 1.6/1.8-meter printing-type eco-friendly solvent printer features a significantly wider print width than conventional office printers, capable of producing large-format content including A0 and A1 sizes. It supports both roll paper and various specialty media, primarily designed for high-precision printing in professional fields such as engineering drawings, advertising posters, and artistic imaging.
XOTO 1.6m/1.8m (5ft / 6ft) large-format Eco-solvent printer is our most popular model since 2003. It has gained good popularity among our domestic market and overseas dealers with its fashionable outlook, stable performance, wide application range, and cost-effective features.
1) Fashionable outlook and durable mechanical design.
2) Epson DX5/XP600/i1600/i3200 print heads for high-resolution image output.
3) Standard ICC file tested with different print heads and our inks for best performance.
4) 1850mm large print size meets a wide range of print jobs for your business.
5) Easy to install, use, and maintain.

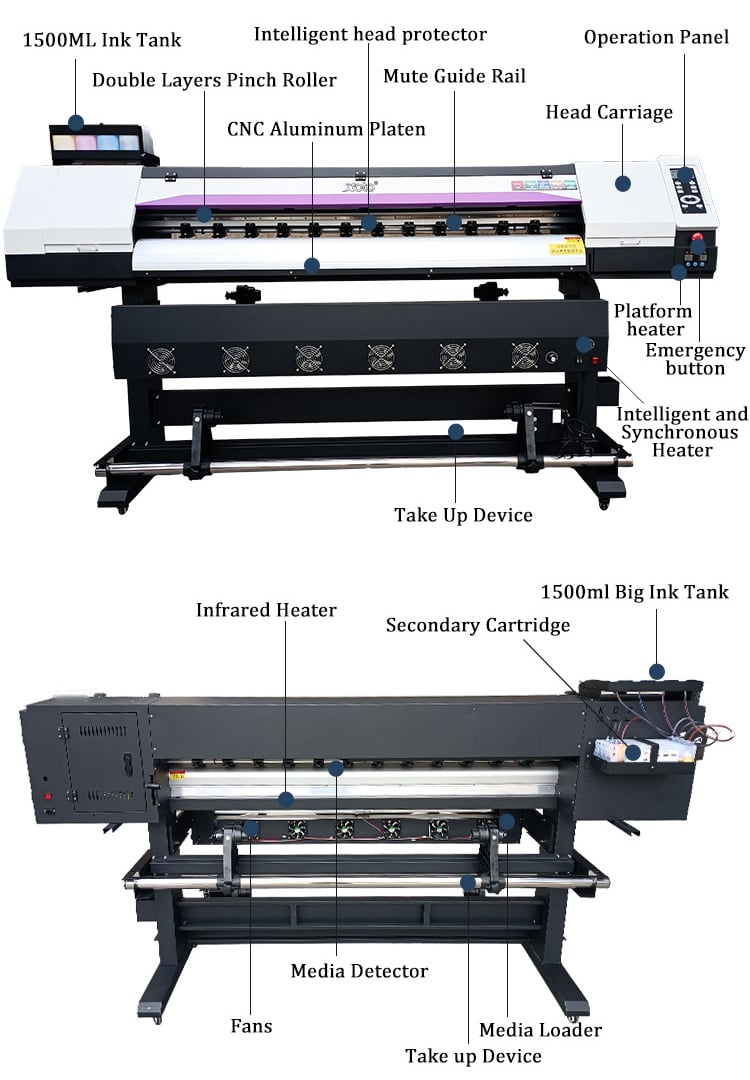

Product Showcase
Product Description
| Model | XT-1601/XT-1602 | XT-1801/XT-1802 | |
| Print Head | Epson XP600 / DX5 /i1600 / i3200 | Epson XP600 / DX5 /i1600 /i3200 | |
| Print Head Number | 1/2 | 1/2 | |
| Print resolution | 1440dpi (i3200 head: 3200 dpi) | 1440dpi (i3200 head: 3200 dpi) | |
| Feeding Width | 1620mm | 1890mm | |
| Print Width | 1600mm | 1850mm | |
| Print Speed | Production 4 Pass | 24sqm/h(one i3200 head speed) | 42sqm/h(two i3200 heads) |
| Precision 6 Pass | 16.8sqm/h(one i3200 head speed) | 32.8sqm/h(two i3200 heads speed) | |
| Ink | Ink Type | Eco solvent ink /water-based ink/Sublimation Ink /UV ink | |
| Color | CMYK 4 Colors/CMYK LM LC 6 Colors/CMYK LMLC LK LLK 8 Colors | ||
| Ink Tank Volume | 1500ml tank for each color | ||
| Supply Type | Negative Pressure CISS | ||
| Print Media | Water-based Media | PP self - adhesive vinyl, backlit film, photo paper, removable PP self - adhesive vinyl, photo cloth, Sublimation Transfer Paper, etc. | |
| Oil-based Media | flex banner,wall paper | ||
| Heating System | Inside automatic smart micro control heating system | ||
| Drying System | Infrared heating system with fans | ||
| Media Loading & Take up System | Standard | ||
| Cleaning System | Automatic cleaning | ||
| Data Transmission | Gigabit Ethernet port | ||
| Software | Maintop, ONYX/Photoprint (optional) | ||
| Power Supply | Single Phase 110V/220V, 50Hz/60Hztemperature 15°C-30°C relative humidity 40-60% | ||
| Power | Min: 32W, Max: 2300W | ||
| Package Size | 230kg/2850*766*665mm | 270kg/2950*766*665mm | |
Product Details Display

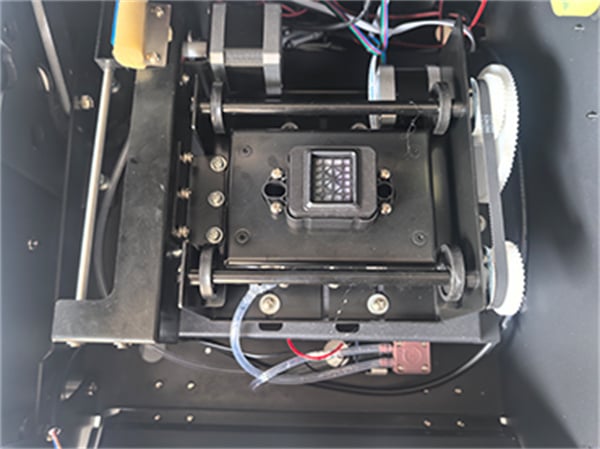

01. Cap Station
Lifting cap station, Auto-keep head wetting, so that head lasts longer.

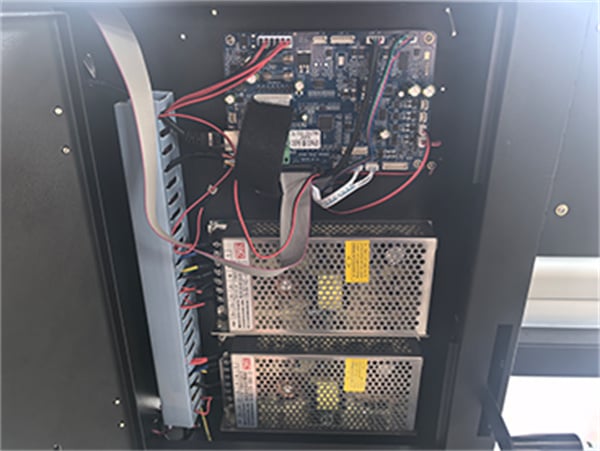

02. Hoson Board / Senyang Board
• More simple
• More convenient
• More faster
• More stable

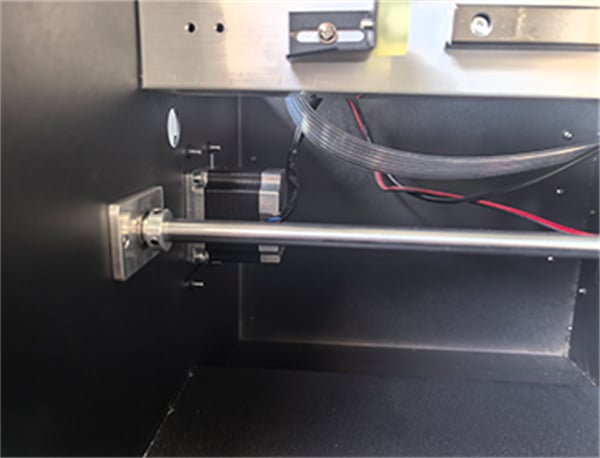

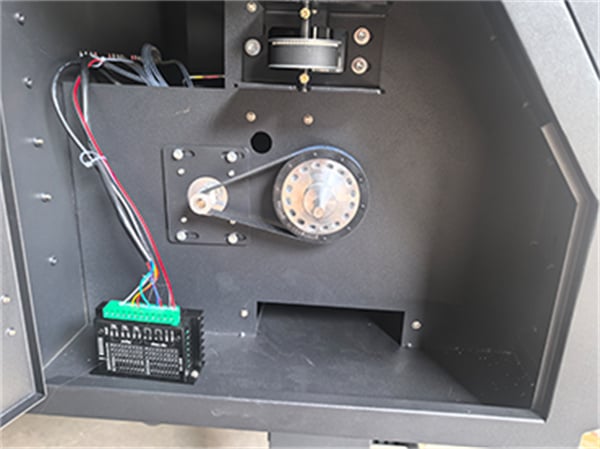

03. Step motor with Driver
• More stable
• Lower noise
• Longer life

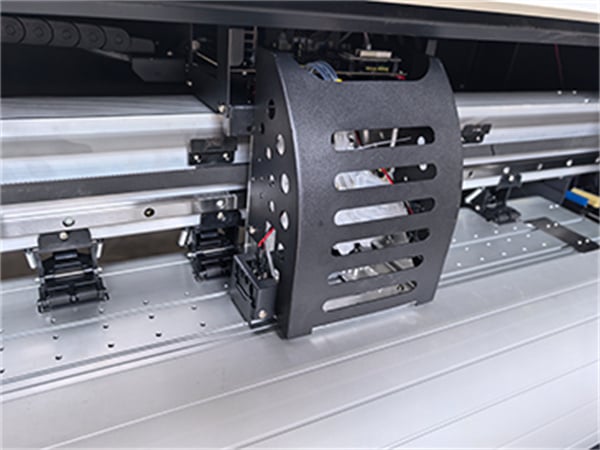

04. Head protector
Automatic stop when material warping.

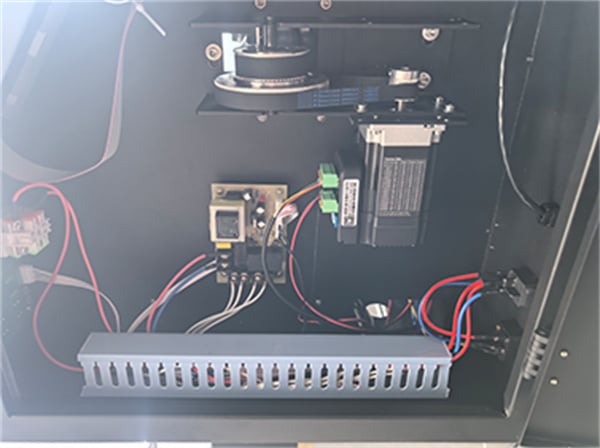

05. Servo motor
• More stable
• Lower noise
• Longer life
• Faster speed
06. Thickened paper feed shaft, durable
06.Thickened paper feed shaft, durable.
Products Applications
Eco-solvent Outdoors Series
-
Billboards
-
Light Boxes
-
Signs
-
Car Stickers
-
Outdoor Advertising
-
Station Sign
Eco-solvent Indoors Series
-
TV Background Wall
-
Cabinet
-
Wallpaper
-
Adhesive PP
-
Indoor Banner
-
Subway Advertising
What are the advantages of wide-format printers?
1) Large print size: Supports A0, A1, and other extra-large formats without splicing. It is ideal for engineering drawings, posters, advertisements, maps, and more.
High-quality image: With high resolution, clear lines and text, and accurate color reproduction of multi - color inks, it is suitable for professional drawing and image output.
2)Extensive media compatibility: Supports various materials including standard paper, photo paper, back adhesive, oil canvas, and film, meeting diverse application needs.
3) Efficiency and cost - effectiveness: Fast printing speed, high - capacity consumables reduce per - sheet costs, and the durable machine design makes it ideal for high - frequency, batch operations.
4) More professional features: Supports continuous roll paper printing. Some models can handle both blueprint and color printing, making it ideal for engineering, advertising, and artistic applications.
