Parameters

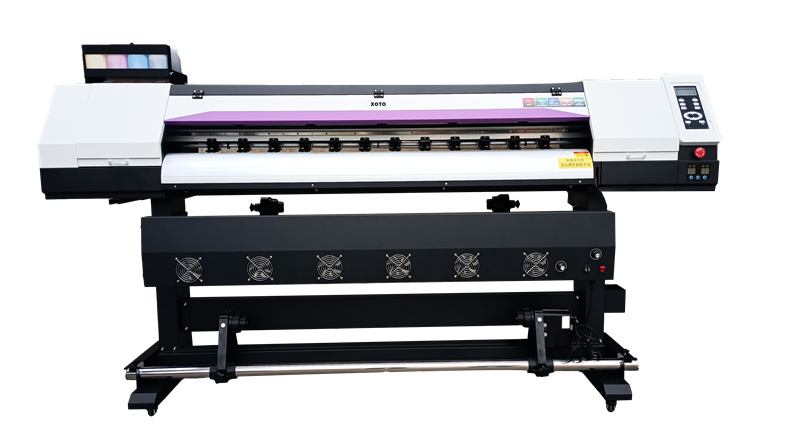

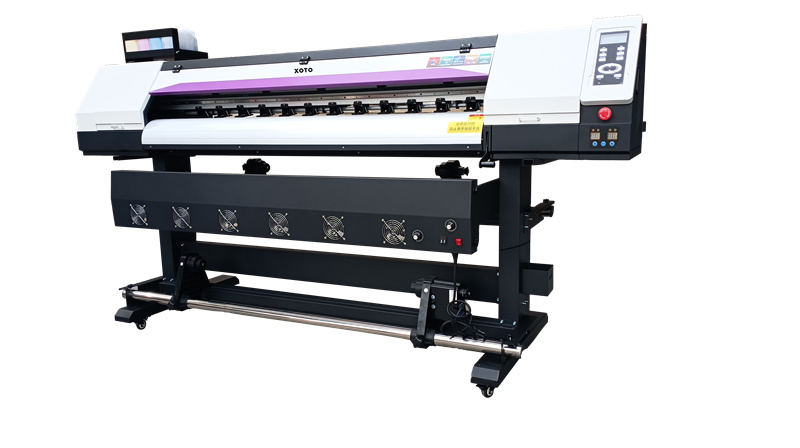

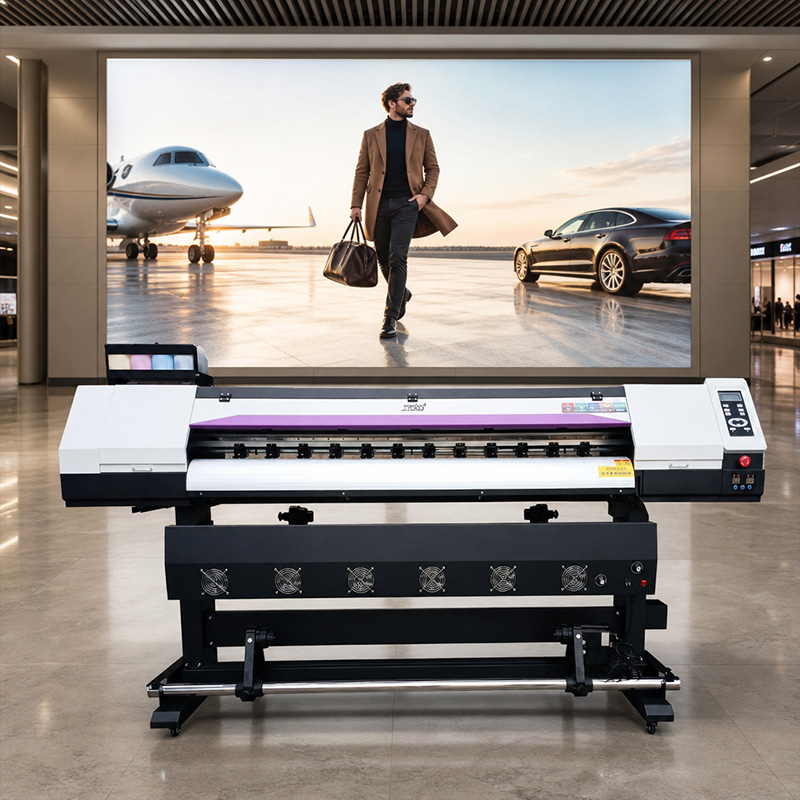

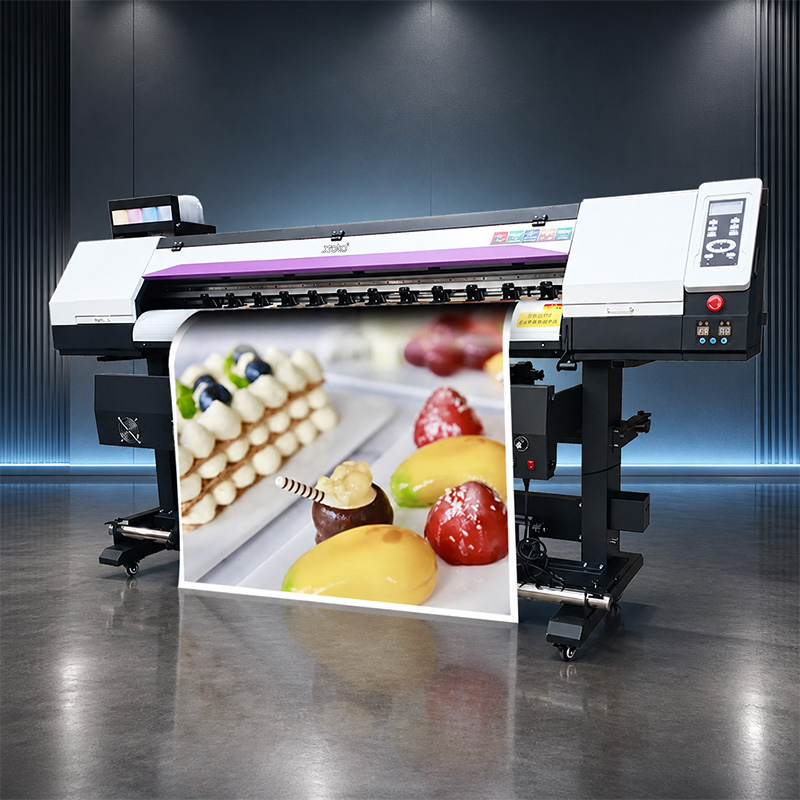

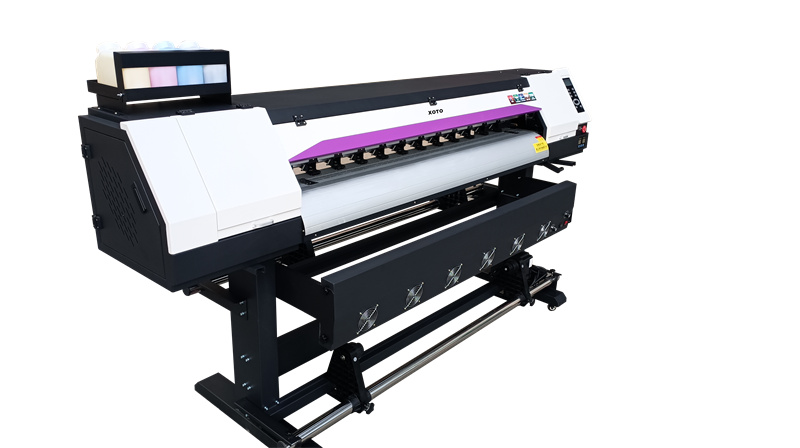

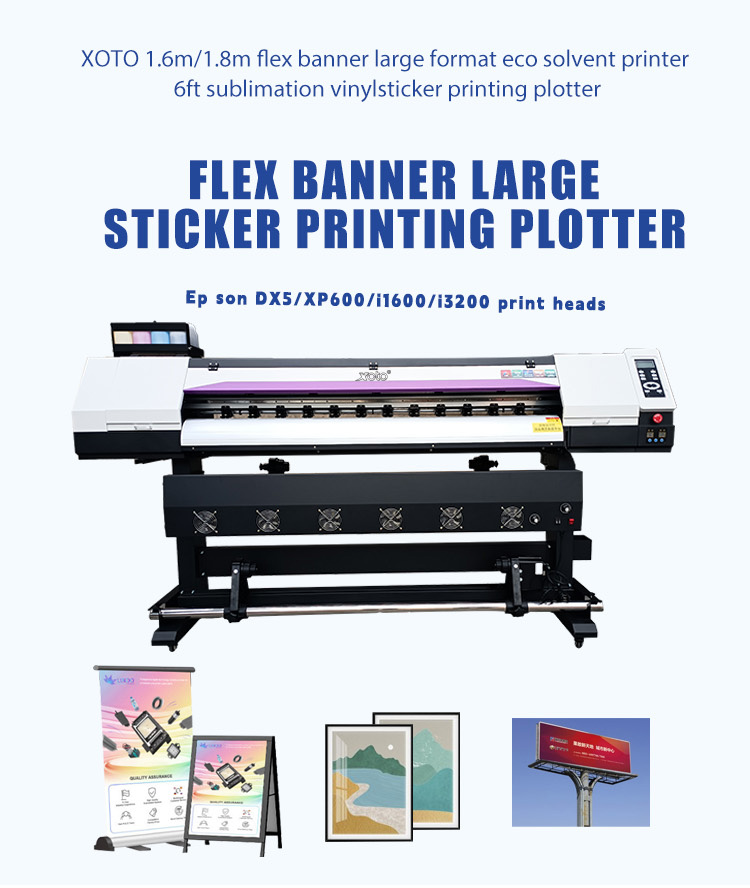

The XOTO XT-1601/XT-1602 and XT-1801/XT-1802 are professional-grade wide format eco solvent printers designed for sign shops, print bureaus, advertising agencies, and large-format production facilities. First introduced in 2003, the XOTO series has earned a global reputation for fashionable design, robust mechanical construction, and cost-effective operation across both domestic and international markets.
Available in 1.6 m (5 ft) and 1.8 m (6 ft) feed widths, and configurable with Epson XP600, DX5, i1600, or i3200 printheads, these wide format eco solvent printers deliver production speeds up to 42 sqm/h and photographic-quality 1440 dpi output — making them the go-to choice for businesses that demand speed, versatility, and reliability.
Key Selling Points
▶ 42 sqm/h High Production Speed: Dual i3200 printhead configuration (XT-1802) reaches 42 sqm/h in Production 4-Pass mode and 32.8 sqm/h in Precision 6-Pass mode, enabling high-volume wide format eco-solvent printing without sacrificing image quality.
▶ Up to 3200 dpi Ultra-High Resolution: With the Epson i3200 printhead, resolution reaches 3200 dpi for fine-detail photographic and graphic output. Standard resolution is 1440 dpi across all supported printhead options (XP600 / DX5 / i1600 / i3200).
▶ Multi-Ink Compatibility — Eco Solvent, Sublimation & Water-Based: Supports eco-solvent ink, water-based ink, sublimation ink, and UV ink on the same hardware platform. CMYK 4-color, CMYK+LM+LC 6-color, and CMYK+LMLC+LK+LLK 8-color configurations are available to match job requirements.
▶ 1850 mm / 1600 mm Wide Print Width: The XT-1801/1802 handles up to 1850 mm print width, covering virtually all standard banner, billboard, and vehicle wrap formats. The XT-1601/1602 covers 1600 mm for sign shops and mid-format production.
▶ Intelligent Dual-Zone Heating System: Inside automatic smart micro-control heating combined with an infrared drying system and platform heater ensures optimal ink adhesion and fast drying across all media types — critical for outdoor-grade eco-solvent output.
▶ Intelligent Head Protector: Automatic stop triggered by media warping prevents costly printhead damage mid-run, reducing maintenance costs and production waste.
▶ Servo Motor + Step Motor Drive System: Servo motor media advance delivers more stable transport, lower operating noise, longer service life, and faster speed compared to conventional motor systems. Paired with a thickened precision paper-feed shaft for accurate registration.
▶ Hoson / Senyang Main Board: Industry-proven control board delivers simpler operation, faster data processing, and more stable print performance — compatible with Maintop, ONYX, and Photoprint RIP software.
▶ 1500 ml Large Ink Tank per Color: ` CISS (Continuous Ink Supply System) with 1500 ml tanks per channel minimizes ink change frequency in long-run production and lowers per-print ink cost.
▶ Gigabit Ethernet Data Transmission: High-speed Gigabit Ethernet port eliminates data bottlenecks when printing large-format high-resolution files, keeping the printhead moving without pause.
Details

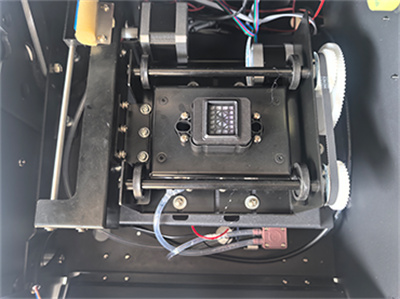

01.Cap Station
Lifting cap station, Auto-keep head wetting, so that head lasts longer.

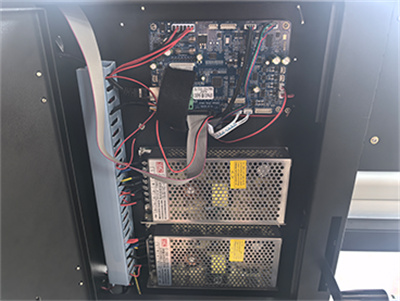

02.Hoson Board / Senyang Board
More simple
More convenient
More faster

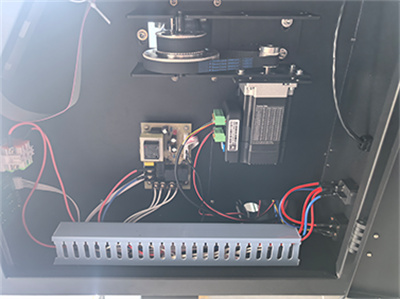

03.Step motor with Driver
More stable
Lower noise
Longer life

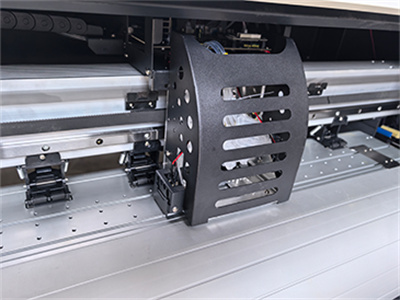

04.Head protector
Automatic stop when material warping.

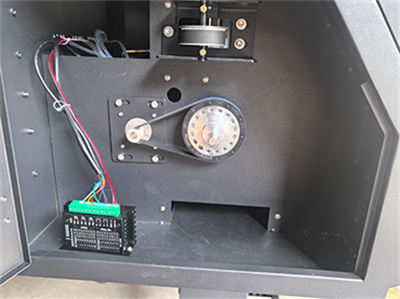

05.Servo motor
More stable
Lower noise
Longer life

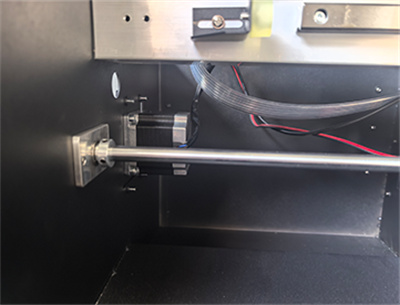

06.Thickened paper feed shaft, durable
Precise paper feeding
Specifications
Model Comparison: XT-1601/1602 vs. XT-1801/1802
| Specification | XT-1601 / XT-1602 | XT-1801 / XT-1802 |
| Feeding Width | 1620 mm | 1890 mm |
| Print Width | 1600 mm | 1850 mm |
| Print Head Options | Epson XP600 / DX5 / i1600 / i3200 | Epson XP600 / DX5 / i1600 / i3200 |
| Print Head Quantity | 1 or 2 | 1 or 2 |
| Speed – 4 Pass | 24 sqm/h (1×i3200) | 42 sqm/h (2×i3200) |
| Speed – 6 Pass | 16.8 sqm/h (1×i3200) | 32.8 sqm/h (2×i3200) |
| Print Resolution | 1440 dpi (i3200: 3200 dpi) | 1440 dpi (i3200: 3200 dpi) |
| Ink Types | Eco Solvent / Water-based / Sublimation / UV | Eco Solvent / Water-based / Sublimation / UV |
| Ink Colors | CMYK 4 / 6 / 8 colors | CMYK 4 / 6 / 8 colors |
| Ink Tank Volume | 1500 ml per color | 1500 ml per color |
| Ink Supply | Negative Pressure CISS | Negative Pressure CISS |
| Heating System | Smart micro-control auto heating + infrared | Smart micro-control auto heating + infrared |
| Drying System | Infrared heating system with fans | Infrared heating system with fans |
| Cleaning System | Automatic | Automatic |
| Data Transmission | Gigabit Ethernet | Gigabit Ethernet |
| Software | Maintop, ONYX / Photoprint (optional) | Maintop, ONYX / Photoprint (optional) |
| Power Supply | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz |
| Power Consumption | Min 32W / Max 2300W | Min 32W / Max 2300W |
| Package Size | 2850 × 766 × 665 mm / 230 kg | 2950 × 766 × 665 mm / 270 kg |
| Working Environment | Temp 15–30 °C / Humidity 40–60% | Temp 15–30 °C / Humidity 40–60% |
Application Scenarios
The XOTO wide-format eco-solvent printer covers an extensive range of outdoor and indoor print applications. Its multi-ink compatibility (eco-solvent, water-based, sublimation) and wide media support make it one of the most versatile large-format printing platforms available.
Outdoor Applications:
· Billboards & large-format outdoor advertising posters
· Backlit light box graphics & transit advertising
· Directional signs, wayfinding signs & station signs
· Vehicle wraps, car stickers & fleet graphics
· Outdoor advertising flex banners & PVC banners
· Construction hoardings & scaffold wraps
· Outdoor event banners & exhibition graphics
Indoor Applications:
· TV background wall murals & custom wallpaper
· Cabinet wraps & retail interior décor
· Adhesive PP self-adhesive vinyl graphics
· Indoor banners, roll-up stands & trade show displays
· Subway advertising & transit poster panels
· Photo paper & backlit film for display systems
· Sublimation transfer paper for fabric printing (with sublimation ink)
· Movable PP & photo cloth for event decoration
This breadth of application makes the XOTO wide-format eco-solvent printer ideal for sign shops, print service providers, advertising agencies, décor studios, vehicle wrap specialists, and textile sublimation printers serving both B2B and retail markets.
Eco-solvent Outdoors Series
-
Billboards
-
Light Boxes
-
Signs
-
Car Stickers
-
Outdoor Advertising
-
Station Sign
Eco-solvent Indoors Series
-
TV Background Wall
-
Cabinet
-
Wallpaper
-
Adhesive PP
-
Indoor Banner
-
Subway Advertising
Printhead Options
▶ Epson i3200 (Recommended): Latest-generation Epson industrial printhead with up to 3200 dpi resolution and the fastest production speed in the XOTO lineup (42 sqm/h with dual heads). Best for high-volume print shops requiring both speed and photographic quality.
▶ Epson i1600: Mid-range industrial printhead delivering excellent resolution at a competitive cost. Ideal for businesses balancing output quality with printhead investment.
▶ Epson XP600: Proven wide-format printhead widely used in eco-solvent applications. Robust, cost-effective, and well-supported by major RIP software platforms.
▶ Epson DX5: Classic large-format printhead with a long track record in eco-solvent printing. Suitable for established print operations that prefer familiar technology and a well-established consumables ecosystem.
Compatible Print Media
Water-Based / Eco-Solvent Media:
• PP self-adhesive vinyl (gloss / matte / clear)
• Backlit film (front-lit & back-lit)
• Photo paper (glossy, matte, satin)
• Movable PP self-adhesive vinyl
• Photo cloth (exhibition fabric)
• Sublimation transfer paper
Oil-Based / Eco-Solvent Media:
• Flex banner (frontlit / backlit PVC)
• Wallpaper (commercial & residential)
• Vinyl sticker rolls
• Perforated window vinyl
• Canvas (artist & display grade)
Why Choose the XOTO Wide Format Eco-Solvent Printer?
• 20+ years of wide-format eco-solvent printer manufacturing since 2003 — proven reliability across global markets.
• Dual i3200 printhead option delivers class-leading 42 sqm/h production speed for high-volume print operations.
• Multi-ink platform (eco-solvent / water-based / sublimation / UV) in one machine body reduces capital investment.
• Standard ICC profiles tested and calibrated for XOTO inks ensure color accuracy out of the box.
• Intelligent head protector and auto-cleaning cap station protect the printhead investment and minimize downtime.
• Gigabit Ethernet + Maintop / ONYX / Photoprint RIP compatibility ensures smooth integration into existing workflows.
• 1500 ml per-channel ink tanks reduce ink change frequency and lower cost-per-square-meter in production.
• XOTO provides full after-sales support: installation, software training, spare-part supply, and remote technical assistance.
About us
From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.
ABOUT Wuhan XOTO technology Co.,Ltd
Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.
Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.
We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.
Our Exhibitions
Cooperative Customer
Our Certification
Product Packaging
Special line logistics and transportation,timely delivery
DELIVERY:we have close cooperatian with gaint logstic company
FAQ
Q1: What is a wide-format eco-solvent printer, and how does it differ from an aqueous inkjet printer?
A wide-format eco-solvent printer uses mildly solvent-based eco-solvent ink that bonds directly to uncoated or lightly coated media (vinyl, banner, wallpaper) without a receptor coating. This gives eco-solvent prints superior outdoor durability—typically 2–5 years unlaminated outdoors—compared to aqueous (water-based) inkjet prints, which require lamination for outdoor use. The XOTO XT series supports both eco-solvent and water-based inks in the same hardware.
Q2: What print speed can the XOTO wide-format eco-solvent printer achieve?
Print speed depends on the model and printhead configuration. With dual Epson i3200 printheads, the XT-1801/1802 reaches 42 sqm/h in Production 4-Pass mode and 32.8 sqm/h in Precision 6-Pass mode. The single-head XT-1601/1602 achieves 24 sqm/h (4-pass) and 16.8 sqm/h (6-pass). Higher pass counts improve print quality at the cost of speed.
Q3: What is the maximum print width of the XOTO eco-solvent printer?
The XT-1801/1802 has a feeding width of 1890 mm and a maximum print width of 1850 mm (approximately 6 ft). The XT-1601/1602 offers a 1620 mm feed width with a 1600 mm maximum print width (approximately 5 ft). Both sizes cover standard billboard, banner, and vehicle wrap formats used in wide-format eco-solvent printing.
Q4: Which printheads are compatible with the XOTO wide-format eco-solvent printer?
The XOTO XT-1601/1602 and XT-1801/1802 are compatible with Epson XP600, DX5, i1600, and i3200 printheads. The Epson i3200 is recommended for maximum speed (up to 3200 dpi, 42 sqm/h with dual heads) and is the most popular choice for high-production eco-solvent print shops. All printhead variants use the same machine body.
Q5: Can the XOTO eco-solvent printer also do sublimation printing?
Yes. By loading sublimation ink instead of eco-solvent or water-based ink, the XOTO XT series can print sublimation transfer paper for heat-transfer onto polyester fabric, sportswear, soft signage, and promotional textiles. The machine hardware is identical; simply change the ink and load sublimation transfer paper as the media.
Q6: What ink colors and configurations are available?
Three colors configurations are available: CMYK 4-color (standard), CMYK+LM+LC 6-color (for enhanced skin tones and smooth gradients), and CMYK+LMLC+LK+LLK 8-color (for maximum color gamut and fine-art output). All configurations use 1500 ml per-channel ink tanks with negative-pressure CISS for uninterrupted production.
Q7: What media types can the wide-format eco-solvent printer handle?
The XOLO XT series prints on a wide range of roll media, includingngng: PP self-adhesive vinyl, backlit film, photo paper, movable PP, photo cloth, sublimation transfer paper (water-based media), flex banner, and wallpaper (oil-based / eco solvent media). Media feeding width up to 1890 mm with automatic take-up device and media loader as standard.
Q8: What RIP software is compatible with the XOTO eco solvent printer?
The XOTO XT series ships with Maintop RIP software as standard and is also compatible with ONYX and Photoprint (optional). All three are industry-standard RIP platforms with comprehensive ICC profile libraries for wide format eco solvent printing, including color management, step-and-repeat, and production workflow tools.
Q9: How does the heating system work on the XOTO wide format eco solvent printer?
The XOTO XT series features a three-zone heating system: (1) an inside automatic smart micro-control heating system that pre-warms the print zone, (2) a platform heater beneath the platen for even media temperature, and (3) an infrared drying system with fans after the print zone to cure the ink rapidly. This combination ensures proper ink adhesion and fast drying for eco solvent, water-based, and sublimation inks.
Q10: What is the ink supply system, and how large are the ink tanks?
The XOTO XT series uses a Negative Pressure CISS (Continuous Ink Supply System) with 1500 ml tanks per color channel. A secondary cartridge buffer maintains stable negative pressure to the printhead, preventing air ingestion and ink starvation during long-run production. Ink monitoring with low-level alarm alerts the operator before ink runs out.
Q11: Is the wide-format eco-solvent printer easy to install and maintain?
Yes. The XOTO XT series is designed for straightforward installation and daily maintenance. The automatic cleaning cap station keeps the printhead wet between jobs, and the intelligent head protector prevents damage from media warping. Automatic cleaning cycles run on schedule or on demand via the operation panel. XOTO provides detailed installation guides, software training materials, and remote technical support.
Q12: What power supply does the XOTO eco-solvent printer require?
The XOTO XT-1601/1602 and XT-1801/1802 operate on single-phase 110 V or 220 V, 50 Hz / 60 Hz power—compatible with electrical infrastructure in most countries. Power consumption ranges from a minimum of 32 W (standby) to a maximum of 2300 W (full heating + printing).
Q13: How does the XOTO wide-format eco-solvent printer compare to competitors?
XOTO has manufactured large-format eco-solvent printers since 2003 and offers standard ICC profiles calibrated specifically for XOTO inks and printheads—an advantage often missing from generic wide-format eco-solvent printers. The combination of servo motor media drive, intelligent head protector, dual-layer pinch roller, and CNC aluminum platen provides mechanical quality typically found in higher-priced competitors, at a cost-effective price point.
