High Resolution UV Printer

Dual-Purpose: UV Flatbed + Roll-to-Roll in One Machine

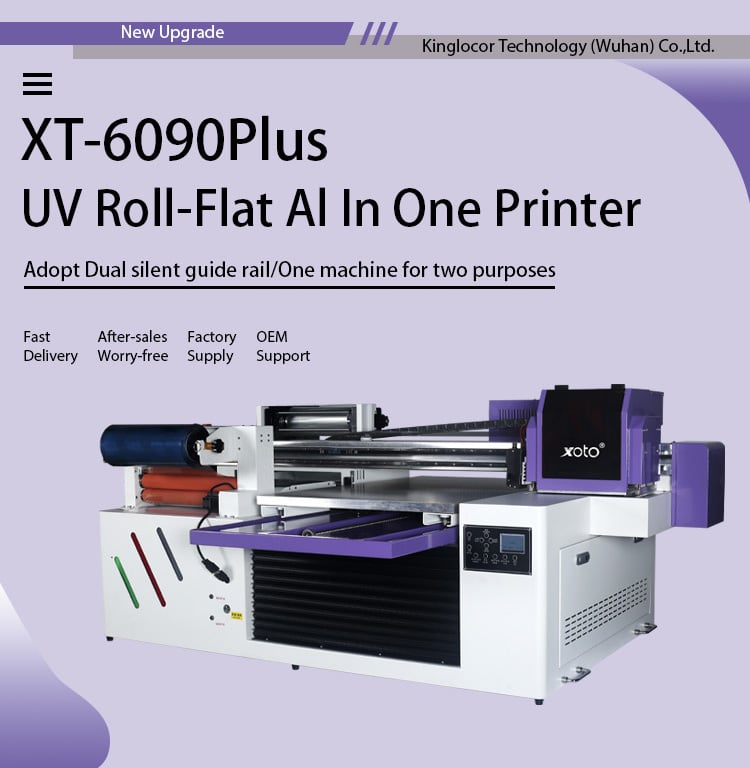

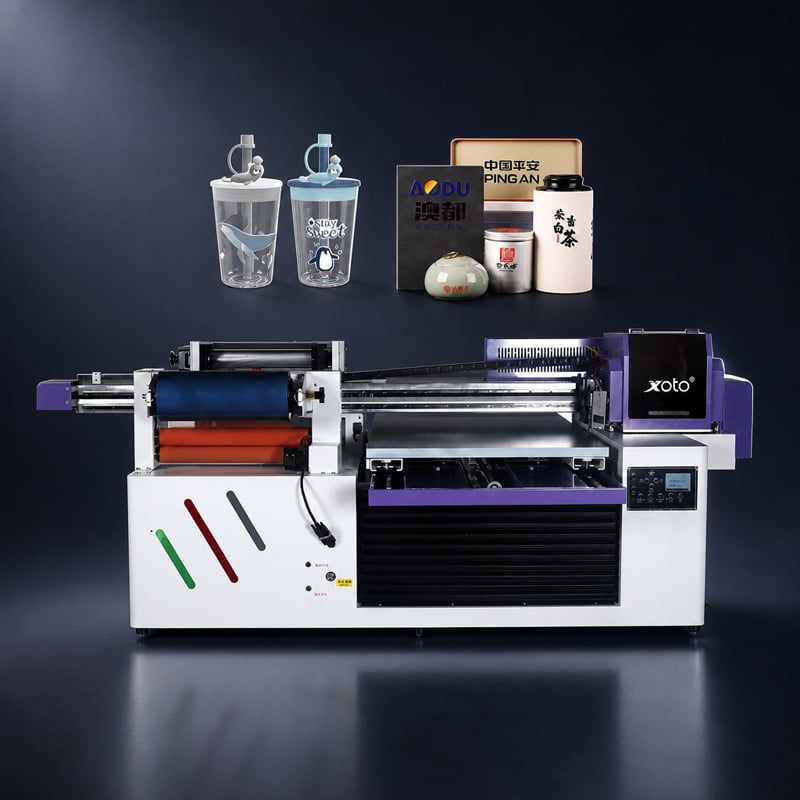

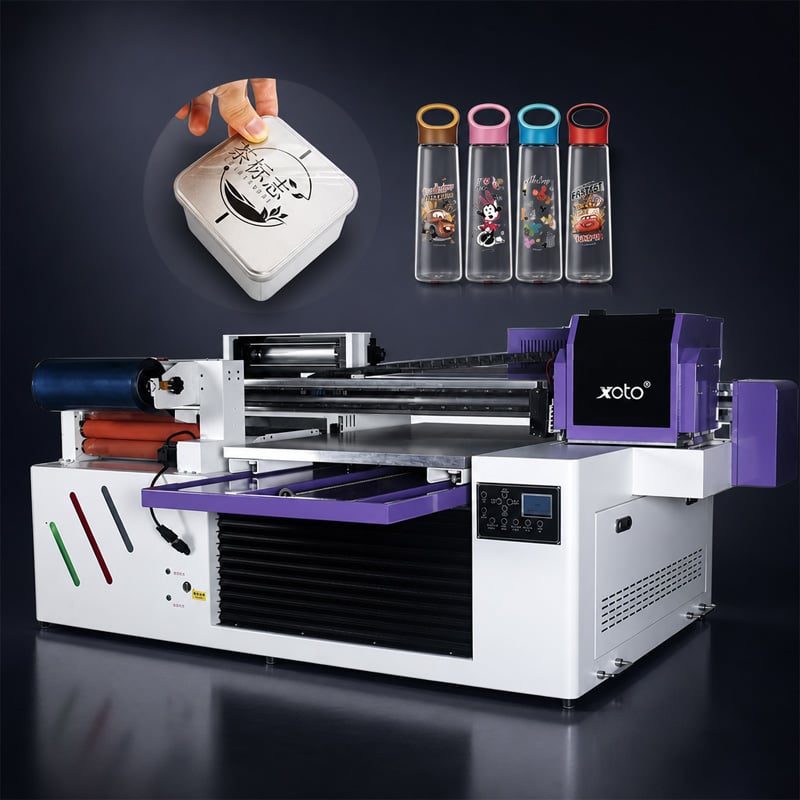

The XT-6090Plus is a true UV roll-flat all-in-one high-resolution UV printer. The 60 × 90 cm vacuum flatbed handles rigid substrates up to 23 cm thick, while the integrated 30 cm roll module feeds continuous flexible media—eliminating the cost of owning two separate machines.

Choice of Industrial Printheads — i3200U1 / i1600U1 / XP600

Select the printhead that matches your resolution and throughput targets: the Epson i3200U1 delivers up to 8 m²/h for high-volume runs; the i1600U1 balances speed and detail at 6 m²/h; and the XP600 is ideal for fine-detail, small-format production. All options qualify the XT-6090Plus as a genuine high-resolution UV printer with sub-pixel dot placement precision.

CNC Precision-Milled Crossbeam & Body

The carriage crossbeam is CNC precision-milled—not cut-profile like competing models. This ensures a perfectly straight, rigid gantry path that maintains consistent head-to-media clearance across the full 90 cm print width, a critical prerequisite for high-resolution UV printing.

Dual Silent Guide Rail — Zero Vibration, Long Life

X-axis motion runs on dual silent guide rails, delivering near-silent operation and eliminating the micro-vibration that causes banding on fast-moving, high-resolution UV printers. The Y-axis uses a double guide screw drive for superior lateral accuracy and repeatability across long print runs.

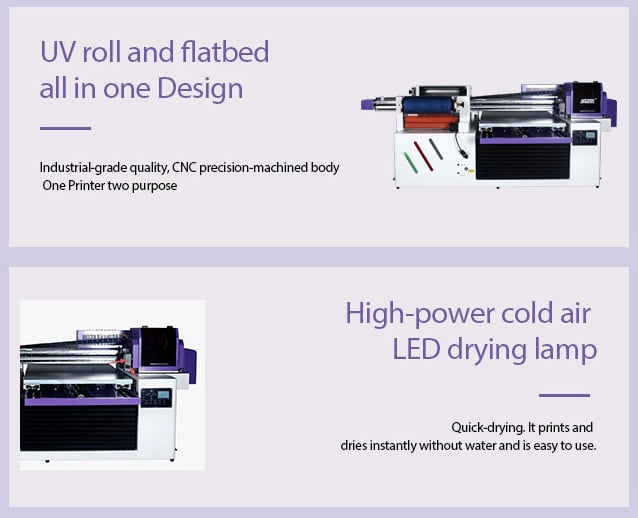

High-Power Air-Cooled UV LED Curing Lamp

The XT-6090Plus cures ink instantly via a high-power cold-air LED system—no water, no antifreeze, no risk of lamp burst. LED lifespan far exceeds traditional mercury lamps, and air cooling eliminates the maintenance complexity of water-cooled alternatives seen in generic high-resolution UV printers.

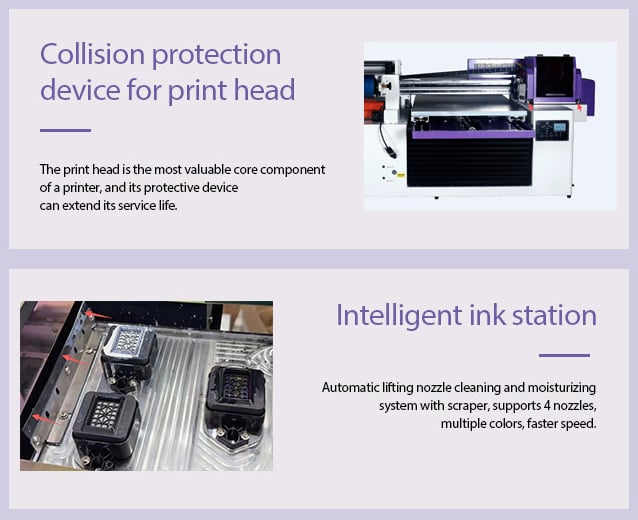

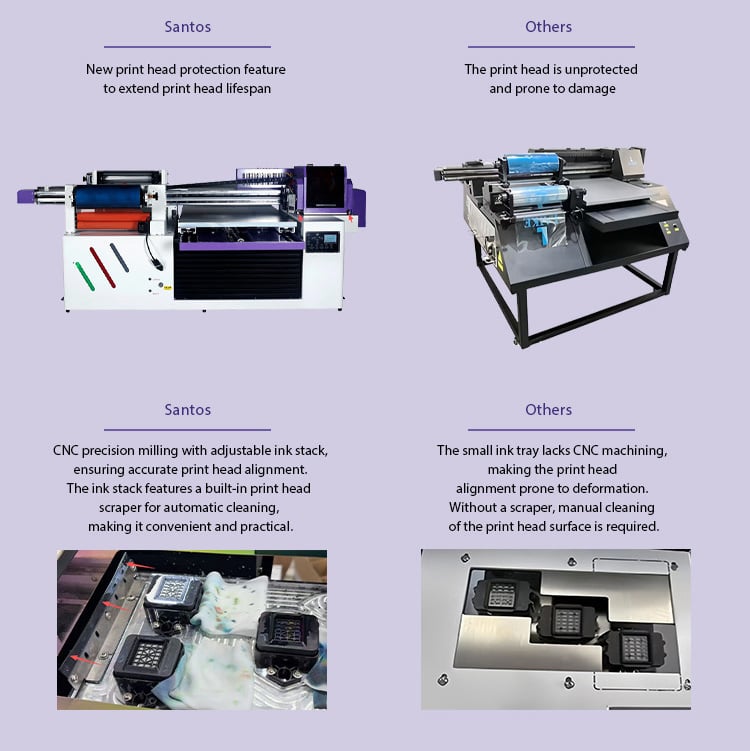

Printhead Collision Protection Device

A dedicated collision sensor monitors the printhead carriage and halts motion immediately upon detecting an obstacle. This safeguards the most expensive component of the machine—a feature absent on most competing high-resolution UV printers—dramatically reducing costly head crashes.

Intelligent CNC Ink Station with Auto Scraper

The ink station is CNC-precision machined for exact printhead alignment and features a built-in auto scraper that cleans the nozzle plate automatically. This prevents ink crust build-up, reduces manual maintenance, and keeps nozzles firing cleanly—essential for sustained high-resolution UV printing quality over multi-shift workdays.

White Ink Circulation Stirring System (6–8 Colors)

White ink pigment settles rapidly in idle tanks, causing clogged nozzles and inconsistent opacity. The XT-6090Plus runs a continuous white ink circulation and stirring loop across up to 8 colour channels, keeping pigment in suspension and eliminating the most common maintenance headache in white-ink high-resolution UV printing.

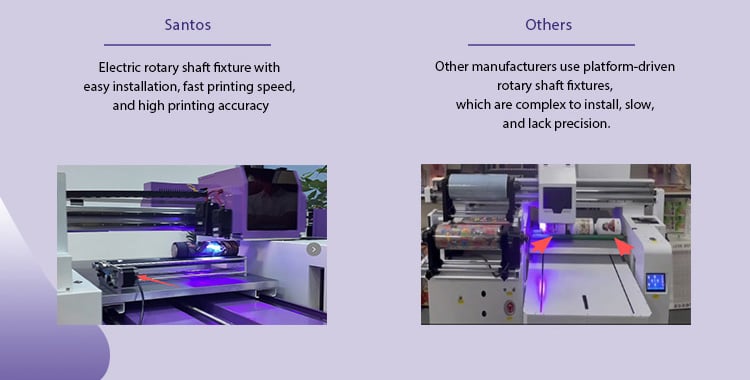

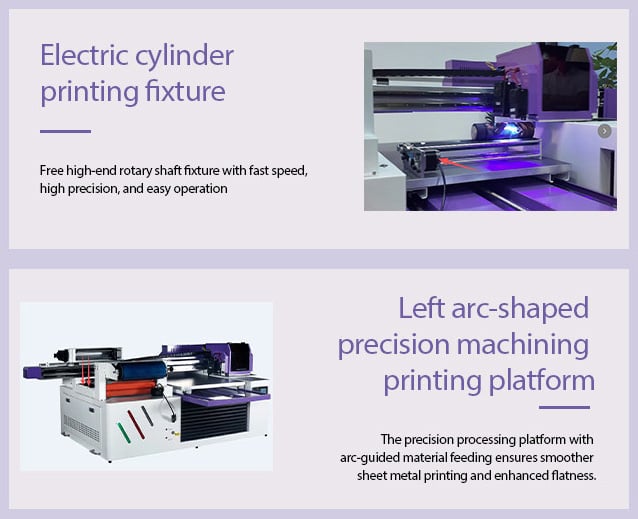

Electric Rotary Shaft Fixture (Cylinder Printing)

An optional electric rotary fixture transforms the XT-6090Plus into a cylindrical object high-resolution UV printer for bottles, cups, tumblers, pens, and cosmetic packaging. The electric drive offers faster setup, higher rotational accuracy, and easier operation than platform-driven rotary systems used by competitors.

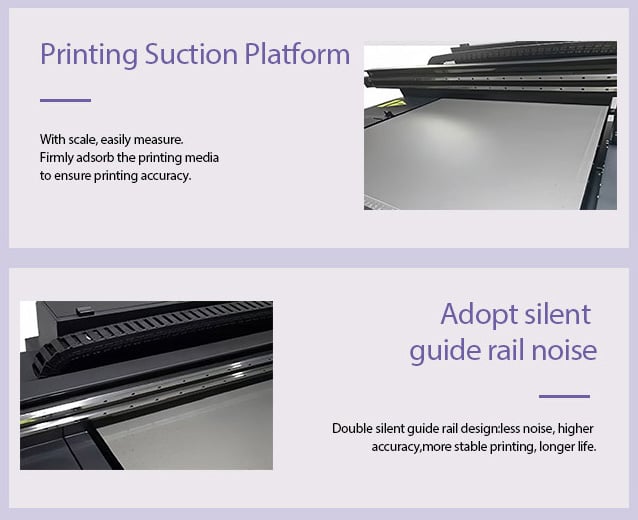

Vacuum Suction Printing Platform with Scale

The steel adsorption platform holds rigid media perfectly flat with uniform vacuum suction. An integrated measurement scale simplifies media positioning and repeat registration, ensuring consistent placement across multi-piece production batches.

Left Arc-Shaped Precision Machining Platform

The arc-guided material feeding platform ensures smoother sheet metal entry and enhanced flatness, eliminating feed skew that can degrade high-resolution UV print quality on thin or warped sheets.

Auto Ink Feed & Automatic Cleaning Cycle

The software-controlled ink supply system automatically feeds ink to each printhead channel and runs scheduled cleaning sprays, reducing operator intervention and maintaining consistent nozzle check results throughout production shifts.

The XT-6090 Plus high-resolution UV printer is equally at home in a boutique custom shop or an industrial decoration facility. Typical applications include:

● Signage & Display — acrylic and aluminium composite panels, backlit signs, POP displays

● Packaging & Labels — rigid gift boxes, cosmetic packaging, wine boxes, personalised product labels

● Promotional Products — phone cases, USB drives, keyrings, awards, plaques, and corporate gifts

● Décor & Furnishings — ceramic tiles, wood panels, decorative glass, wallpaper rolls

● Apparel & Leather — leather handbags, belts, sneaker panels, garment patches on roll media

● Industrial Marking — nameplates, instrument panels, control overlays, safety labels

● Photography & Art Prints — canvas prints, fine art reproduction, photo panels

● Point-of-Sale — retail shelf strips, standees, menu boards, exhibition graphics

● Cylinder Objects — branded drinkware, cosmetic tubes, pens, candles (with rotary fixture)

● OEM & White-Label Production — custom print runs for resellers and brand owners

Product Application

High-Quality Mechanical Design

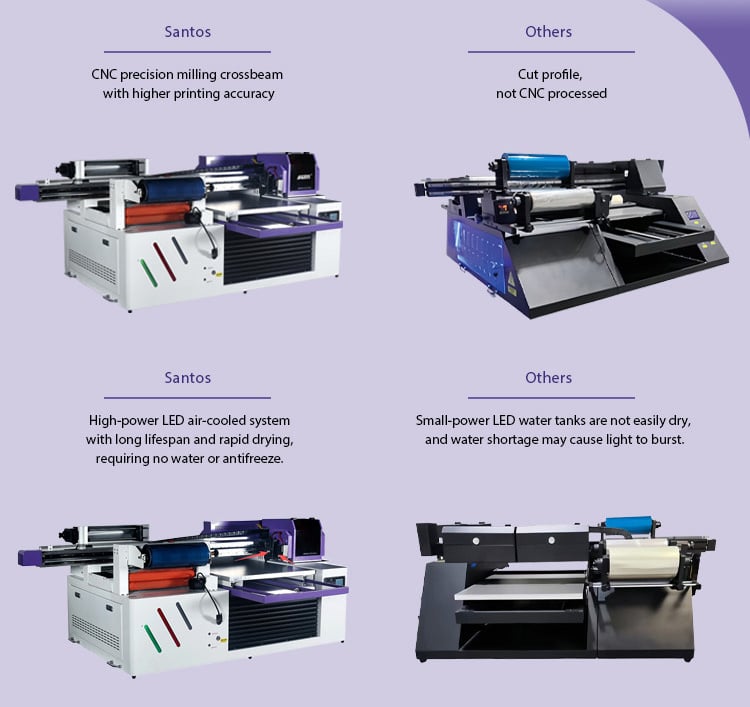

XT-6090Plus vs. Generic High-Resolution UV Printers

Not all high-resolution UV printers are built the same. The table below shows where XOTO's engineering investment translates to measurable production advantages.

Bottom line: The XT-6090Plus delivers consistent, repeatable, high-resolution UV print quality because every critical mechanical component—from crossbeam to ink station to guide rail—is built to a higher standard than competing machines.

Why Choose for Your High-Resolution UV Printer?

● 10+ years of UV printing R&D and manufacturing expertise

● 100+ authorised agents worldwide for local sales and service support

● 1,000+ deep-cooperation customers across 60+ countries

● Factory-direct pricing with full OEM / custom branding support

● Fast delivery in fumigated export-grade wooden packaging

● Comprehensive after-sales: remote training, on-site engineers, genuine spare parts

● Continuous firmware and RIP software updates to protect your investment

From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.

ABOUT Wuhan XOTO technology Co.,Ltd

Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.

Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.

We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.

Our Exhibitions

Cooperative Customer

Our Certification

Product Packaging

Special line logistics and transportation,timely delivery

DELIVERY:we have close cooperatian with gaint logstic company

Everything buyers need to know before investing in a high-resolution UV printer — answered.

Q1: What makes the XT‑6090 Plus a high‑resolution UV printer?

The XT‑6090Plus achieves high‑resolution UV printing through its choice of Epson i3200U1, i1600U1, or XP600 industrial printheads—each capable of sub‑10‑picoliter droplet precision. Combined with a CNC‑milled crossbeam structure, dual silent guide rails, and Y‑axis double screw drive, the machine eliminates micro‑vibration and maintains a consistent head‑to‑media distance, producing sharp text, fine gradients, and photographic detail on virtually any substrate.

Q2: What substrates can the XT‑6090Plus high‑resolution UV printer print on?

Thanks to its flatbed + roll‑to‑roll all‑in‑one design and 0–23 cm adjustable print height, the XT‑6090Plus handles rigid substrates (acrylic, glass, ceramic, wood, metal, leather, phone cases, packaging boxes) and flexible roll media (canvas, PVC, vinyl, fabric, wallpaper)—all on one machine without swapping hardware.

Q3: How fast is the XT‑6090Plus high‑resolution UV printer?

Print speed depends on the selected printhead: up to 8 m²/h with i3200U1 heads, 6 m²/h with i1600U1 heads, or 4 m²/h with XP600 heads. Bidirectional printing mode further increases throughput withoutut compromising quality, making it suitable for both high‑detail short runs and high‑volume commercial production.

Q4: What is the print area, and can the XT‑6090Plus print on cylindrical objects?

The flatbed zone covers 60 × 90 cm with a print height of up to 23 cm. The roll module supports 30 cm width for continuous media. An optional electric rotary shaft fixture (cylinder function) enables high‑resolution UV printing on bottles, cups, tumblers, and other round objects with fast installation and precision alignment.

Q5: How does the air‑cooled UV LED curing system benefit my operation?

Unlike water‑cooled UV lamps that risk lamp burst if the coolant runs out, the XT‑6090Plus uses a high‑power cold‑air LED system requiring no water or antifreeze. It delivers instant, uniform curing across the full print zone, extends lamp lifespan, lowers running costs, and simplifies daily maintenance—ideal for operators who run multi‑shift production.

Q6: Does the high‑resolution UV printer support white ink and varnish printing?

Yes. The XT‑6090Plus prints CMYK + White + Varnish (CMYK+W+V) in a single pass. The 6–8 colour white ink circulation stirring system continuously agitates white ink to prevent pigment sedimentation, ensuring consistent opacity and eliminating the head‑clogging downtime that plagues many competing high‑resolution UV printers.

Q7: What RIP software is compatible with the XT‑6090 Plus?

The machine supports Ruian, Ruian Color, and Maintop RIP software on Windows 7, 10, and 11. These industry‑standard platforms provide precise colour management, white‑ink channel control, varnish layering, and nesting tools for efficient gang‑sheet production.

Q8: How does it protect the printhead on the XT‑6090Plus?

The XT‑6090Plus incorporates a dedicated printhead collision protection device—a sensing mechanism that automatically halts the carriage if an obstacle is detected, preventing costly head crashes. Additionally, the CNC‑precision intelligent ink station features a built‑in auto scraper that cleans the head surface automatically, eliminating manual wiping and reducing contamination risk.

Q9: What is the ink consumption rate, and is UV ink expensive to run?

Ink consumption is approximately 1.5 ml per square metre—among the most economical figures in the high‑resolution UV printer category. UV inks cure instantly under the LED lamp (no evaporation waste), and the automatic ink‑supply system delivers precise dosing with auto‑cleaning cycles to prevent wasteful purging.

Q10: What after‑sales support does provide?

brings 10+ years of UV printer manufacturing experience, 100+ global agents, and 1,000+ deep‑cooperation customers to back every XT‑6090Plus. Support includes remote video guidance, on‑site engineer service (region dependent), OEM customization, factory‑direct spare parts, and ongoing firmware/software updates to keep your high‑resolution UV printer performing at peak for years.
