Parameters

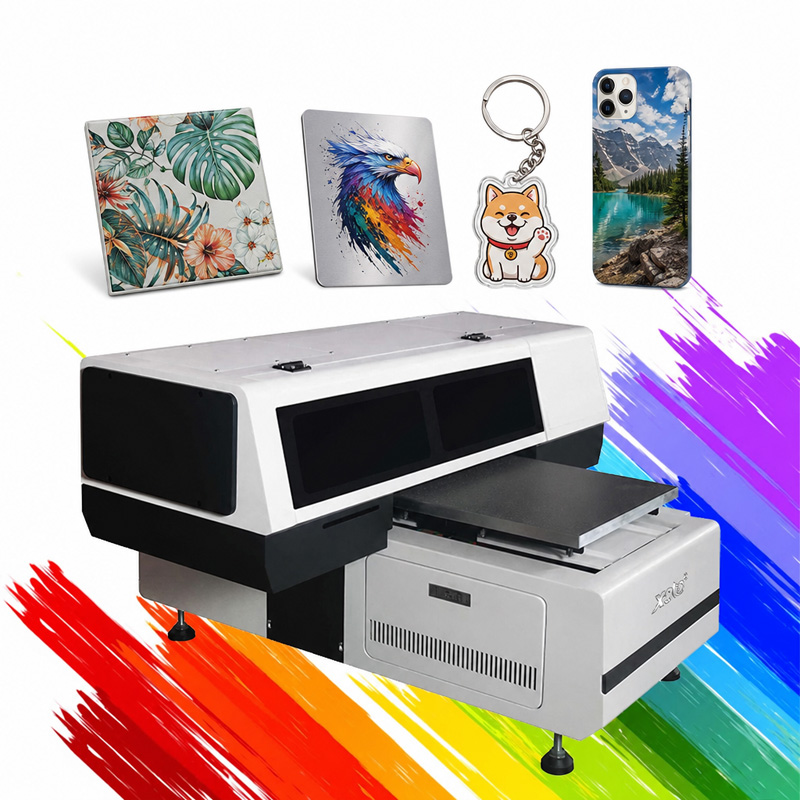

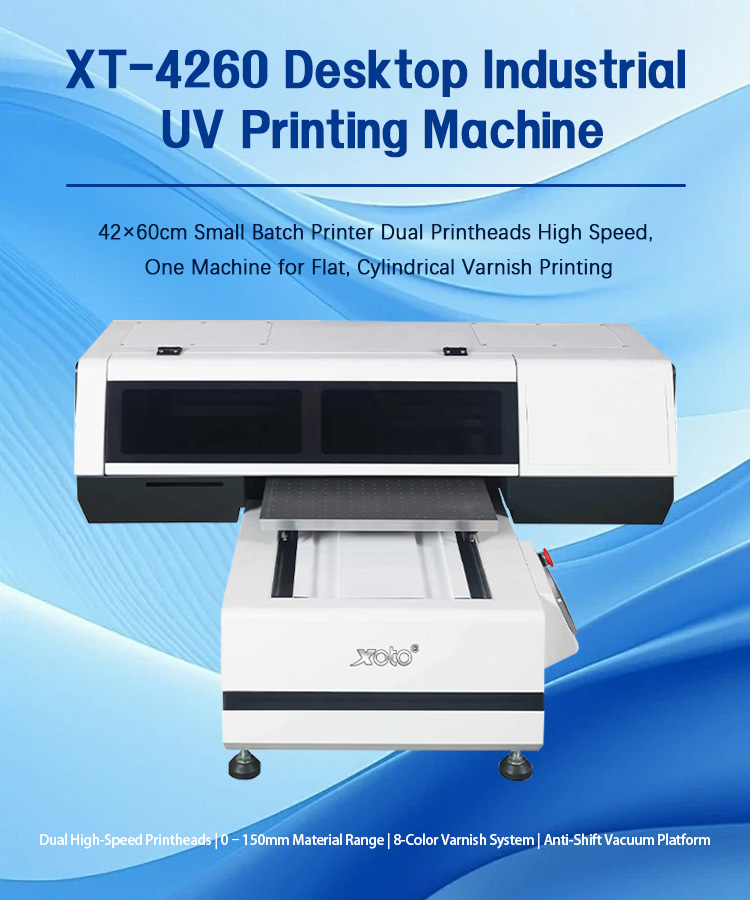

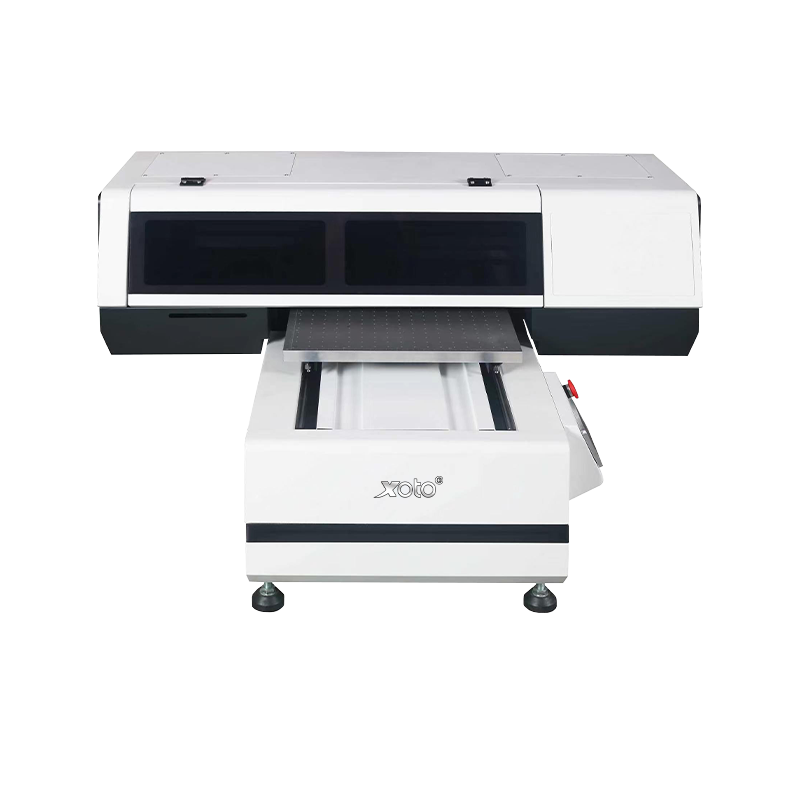

The XT-4260 is a compact desktop industrial UV printer designed for high-volume professional production. Its dual high-speed printheads deliver sharp, vibrant output with a maximum resolution of 2880 dpi across a 42×60cm print bed, while the 8-color ink system — which includes a dedicated varnish channel — allows you to produce photographic gradients, opaque white underlays, and raised spot-gloss effects all in a single pass. With 0–150mm automatic height adjustment and an anti-shift vacuum platform, it can print on glass, acrylic, ceramic, leather, metal, wood, and cylindrical items such as bottles and mugs without requiring equipment changes. Ideal for gift shops, phone case printing studios, signage businesses, packaging prototyping, and promotional merchandise production, the XT-4260 is an all-in-one industrial UV printing solution for businesses that require professional print quality, fast turnaround, and long-term reliable performance.
What Is an Industrial UV Printer?
An industrial UV printer uses ultraviolet light to instantly cure UV-reactive inks onto virtually any substrate—whether flat or cylindrical—delivering vibrant, scratch-resistant prints that dry in seconds. Unlike solvent-based printers, industrial UV printers emit no harmful VOCs, require no heat tunnel, and work on both rigid and flexible materials without pre-treatment.
The XT-4260 is a compact but powerful industrial UV printer, designed for small-to-medium businesses, gift shops, creative studios, and light manufacturing lines that need professional output in a space-saving desktop form factor.
Why Choose the XT-4260 Industrial UV Printer?
• Dual High-Speed Printheads — Delivers a balanced combination of speed and precision in a single pass
• 42 × 60 cm Print Area — This A2+ format is ideal for prototyping and small-batch production
• 0–50 mm Adjustable Height Range — Accommodates thick rigid boards, phone cases, wine bottles and mugs
• 8-Color Varnish Ink System (C/M/Y/K/W/LM/LC/V) — Delivers a richer color gamut than standard 6-color industrial UV printers
• Optional Cylindrical Printing Module — A single machine can handle both flat and round objects
• Anti-Shift Aluminum Vacuum Platform — Eliminates media shifting entirely, delivering sharp, consistent print registration
• Automatic Height Detection & Electric Lifting — Eliminates errors from manual height measurement
• Approx. 130 kg Net Weight — Light enough to reposition without heavy lifting equipment

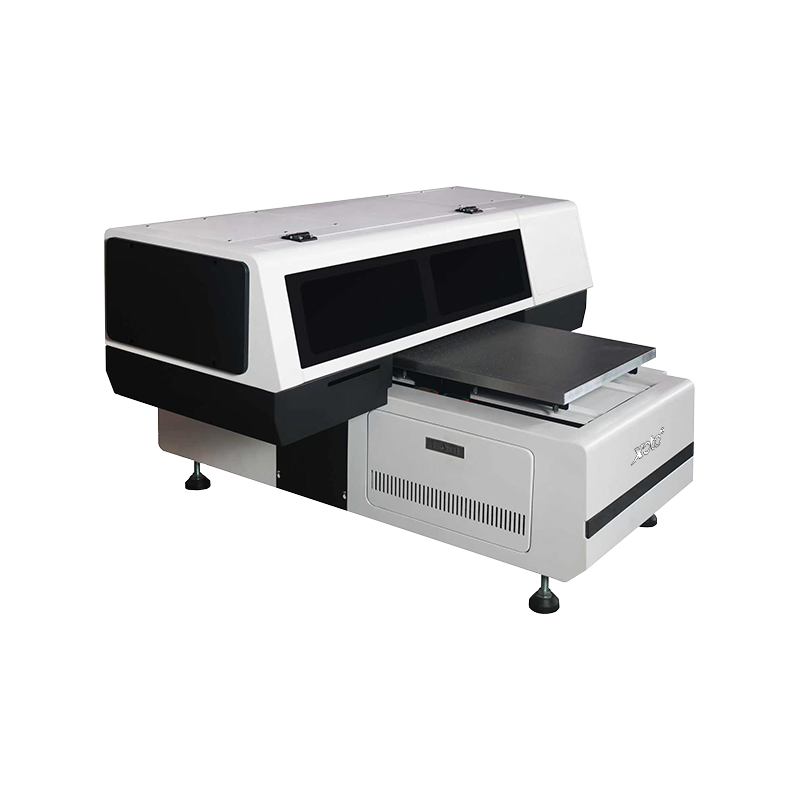

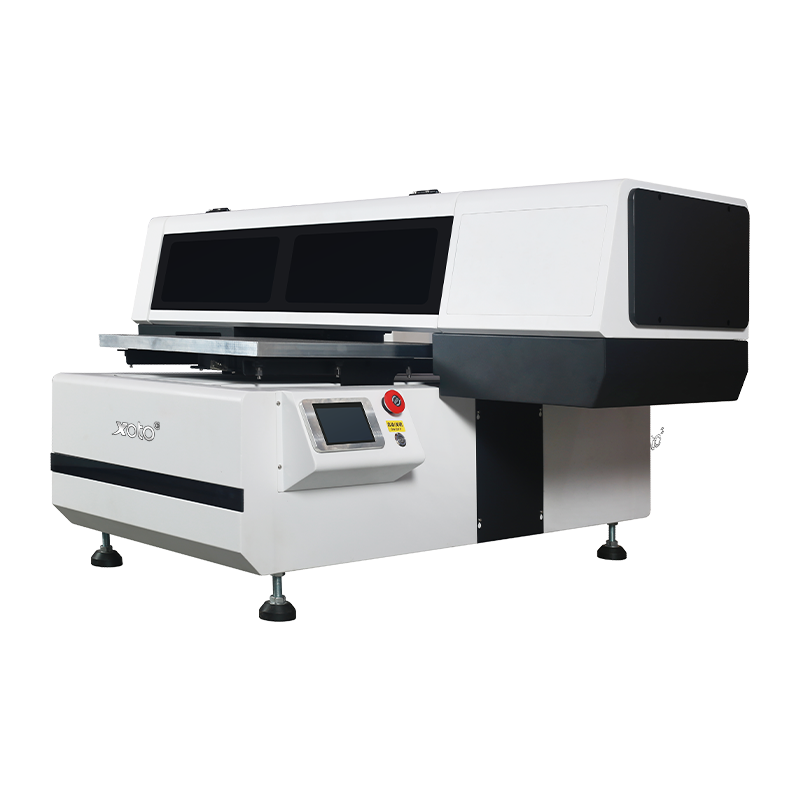

Display
Specifications
XT-4260 Industrial UV Printer — Full Technical Specifications
| Parameter | Specification |
| Machine Model | XT-4260 |
| Printing Size | 42 cm x 60 cm |
| Number of Printheads | 2 pcs (Dual High-Speed Printheads) |
| Resolution | 1440 x 2160 x 2880 dpi |
| Height Range | 0 150 mm |
| Height Adjustment | Automatic Height Detection / Electric Lifting |
| Printing Platform | Standard Aluminum Vacuum Suction Platform |
| Special Processes | Varnish & Cylinder Printing (Optional) |
| Color Inks | C, M, Y, K, W, LM, LC, V 8 colors total |
| Ink Supply System | Pressure Ink Supply System; Automatic White Ink Stirring |
| Printhead Maintenance | Auto Flash Spray; Auto Humidification; One-Click Cleaning |
| Image Formats | TIFF, BMP, JPEG, PDF |
| Operating System | Windows Only (Mac OS Not Supported) |
| Total Power | 350 W |
| Power Supply | AC 110 V / AC 220 V, 50/60 Hz AC |
| Servo Motor | High Precision Servo Motor |
| Machine Dimension | 1250 x 1140 x 800 mm |
| Wooden Case Dimension | 1350 x 1240 x 980 mm |
| Machine Weight | Approx. 130 kg |
| Environmental Requirements | 10°C 35°C; Relative Humidity 30%–80%; Non-Condensing |
| Printable Materials | Glass, Acrylic, Ceramic Tile, Metal Sheet, Cardboard, Fabric, Wood Board, Leather, PVC, PP, PE, PTFE; Cylindrical: Wine Bottles, Insulated Mugs, etc. |
| Shipping Accessories | 1x Machine, 1x Ink Set, Printing Software, Layout Software, Graphic Design Software, Power Cord, Data Cable, 2x Spare Ink Sacs, 1x Spare Screws Pack, 1x Moisturizing Liquid, 1x Dust-Free Cloth |
Core Technology of This Industrial UV Printer
1. Y-Axis Lead Screw Drive
Most entry-level UV flatbed printers rely on a belt-driven system for Y-axis movement, which wears down over time and causes micro-banding on finished prints. The XT-4260 industrial UV printer adopts a precision Y-axis lead screw, which delivers higher accuracy, lower noise, and stronger wear resistance, ensuring consistent dot placement across long print runs.
2. 8-Color Fujifilm Ink System
Mainstream industrial UV printers are equipped with 6-color ink systems. The XT-4260 adds light cyan (LC) and light magenta (LM), allowing it to produce smooth gradients and photographic skin tones that 6-color models cannot match. Its dedicated varnish (V) channel also enables raised 3D spot-gloss effects and simulated embossing in just one pass.
3. Automatic Height Detection on the Print Carriage
A sensor mounted on the carriage measures substrate height in real time and adjusts the printhead gap automatically. This function is critical for an industrial UV printer handling jobs with substrates of varying thickness: it prevents the printhead from striking the substrate and maintains the ideal ink-drop distance (typically 1–2 mm) for the sharpest possible output.
4. Aluminum Vacuum Suction Platform
This ultra-flat, precision-machined aluminum bed uses distributed vacuum suction to hold flexible or thin media in place without tape or additional fixtures. For an industrial UV printer that produces repeated orders, this cuts out unnecessary setup time and ensures identical registration for every copy, which is essential for multi-layer white-ink or varnish printing.
Product Details

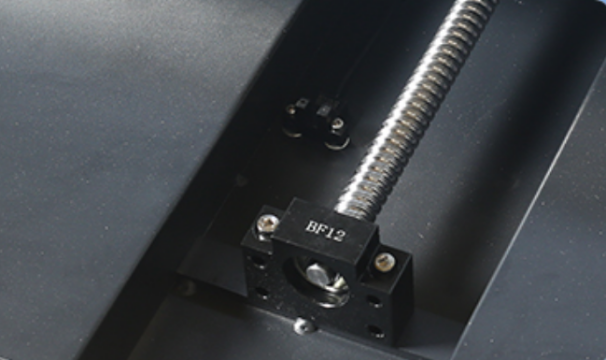

Y-Axis Lead Screw
Equipped with Y-axis lead screw, higher precision than traditional belt drive. Features high accuracy, low noise and wear resistance toensure precise positioning.

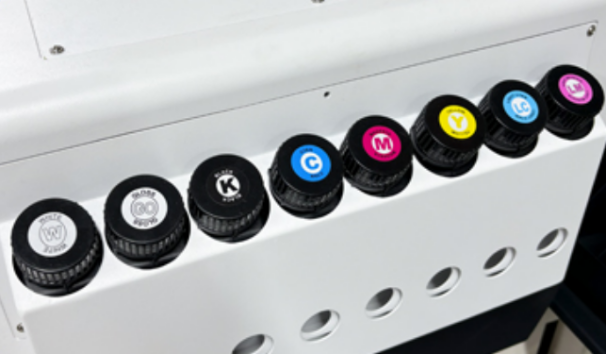

Fangjia New 8-Color System
Adopts latest 8-color ink cartridge technology (with light cyan & light magenta). Delivers higher image restoration, brighter colors and finer ink dots compared to mainstream 6-color printers.

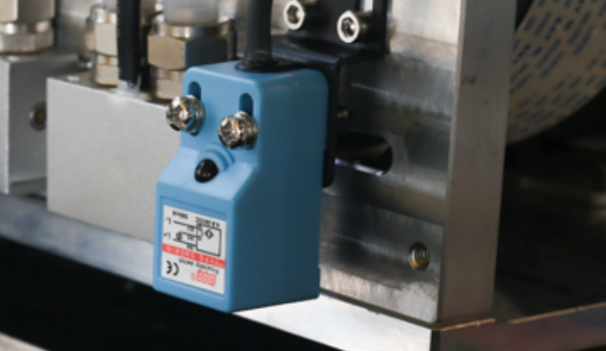

Automatic Height Detection on Carriage
Automatically detects object height to maintain uniform printing distance and avoid printhead collision.

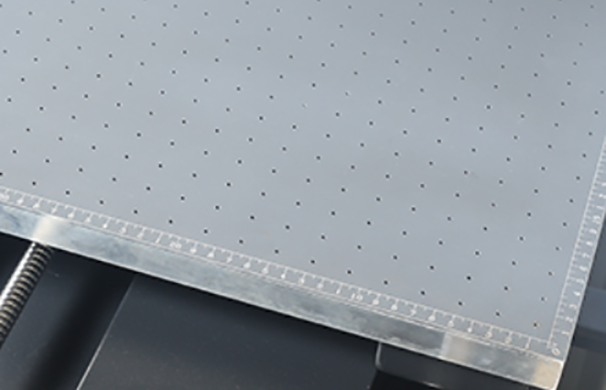

Aluminum Vacuum Suction Platform
Precisely machined aluminum platform with ultra-flat surface, tightly fixes printing media without bending/deformation. Uniform vacuum suction prevents material shifting during printing.

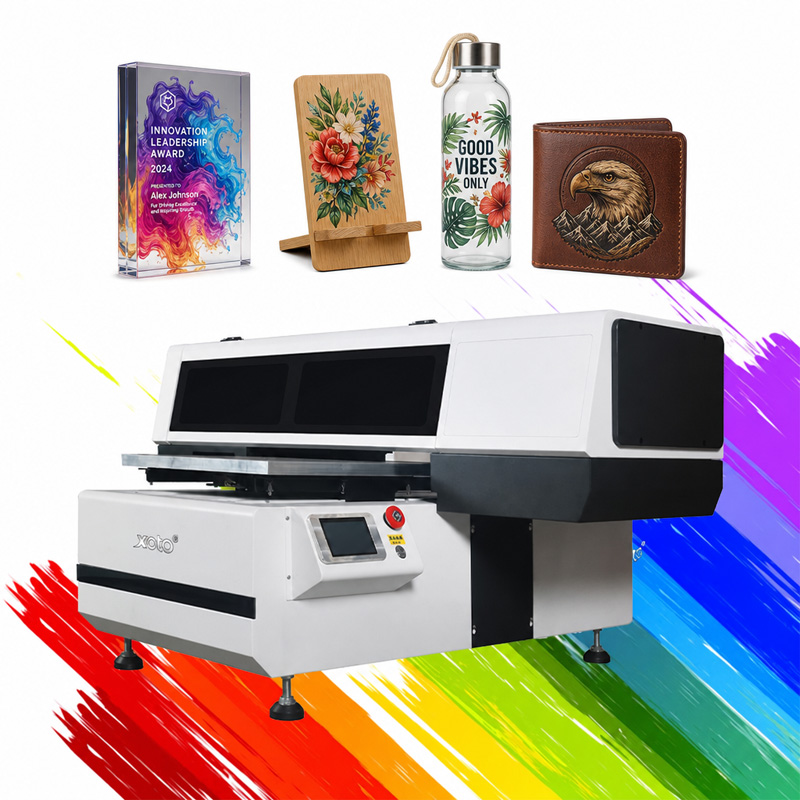

Materials You Can Print On with This Industrial UV Printer
The XT-4260 0–50 mm height clearance and adjustable vacuum bed make it one of the most versatile desktop industrial UV printers on the market. Compatible substrates include:
• - Rigid Flat: Glass panels, acrylic sheets, ceramic tiles, metal plates, foam boards, wooden plaques, leather goods, PVC signage, PP/PE plastics, PTFE
• - Flexible Flat: Cardboard, fabric, canvas
• - Cylindrical (optional rotary attachment): Wine bottles, insulated tumblers/mugs, water bottles, pen barrels, cosmetic containers
Whether you run a trophy shop, a phone-case decoration studio, a packaging prototype house, or a promotional gift business, this industrial UV printer covers your required substrate range without the need for additional equipment.
Product Application
-
Phone Cases
-
Wooden Cup Holders
-
Glass Cups
-
Metal Nameplates
-
Acrylic Display Boards
-
Decorative Paintings
-
Car Stickers
-
Gift Boxes
-
Road Signs
-
Carpet
-
Bill board
-
Translucent Film
-
Canvas Bags
-
Flags
-
T-Shirts
-
Table Cloth
-
Curtains
-
Bed Covers
XT-4260 vs. Standard 6-Color Industrial UV Printers
| Feature | XT-4260 | Typical 6-Color Industrial UV Printer |
| Ink Colors | 8 (incl. LC, LM, Varnish) | 6 (C/M/Y/K/W + 1) |
| Color Accuracy | High (smooth gradients) | Standard |
| Varnish / Spot Gloss | Yes built-in V channel | Usually not included |
| Cylindrical Printing | Optional (rotary attachment) | Rare at this price range |
| Height Range | 0–50 mm | Typically 0–100 mm |
| Height Detection | Automatic (sensor-based) | Manual adjustment common |
| Y-Axis Drive | Lead Screw (high precision) | Belt Drive (standard) |
| Vacuum Platform | Aluminum (anti-shift) | Basic flat table |
| Printhead Maintenance | Auto Flash / Humidify / Clean | Manual or semi-auto |
Setup, Installation & Operating Requirements
Getting started with the XT-4260 industrial UV printer is straightforward. The machine ships fully assembled in a reinforced wooden case. Below is the setup checklist:
• - Power: AC 110 V or AC 220 V, 50/60 Hz. Confirm your local voltage before powering on the unit.
• - PC Requirements: Windows OS only (Mac OS not supported); a minimum of 8 GB RAM is recommended for ripping large files.
• - Software: RIP printing software, layout software, and graphic design software are all included in the package.
• - Environment: Place the printer in a temperature-controlled room (10°C–25°C) with 30%–80% relative humidity, and ensure no condensation forms in the workspace.
• - Ventilation: UV inks contain photoinitiators. Maintain adequate airflow around the device. While the industrial UV printer does not require a dedicated exhaust system, a well-ventilated workspace is recommended.
• - Leveling: Adjust the four leveling feet to ensure the print bed is perfectly horizontal before your first use.
Maintenance & Longevity Tips for Your Industrial UV Printer
Proper maintenance is the single most important factor for extending printhead service life on any industrial UV printer. The XT-4260 automates the most critical maintenance routines:
• - Auto Flash Spray: Keeps nozzles moist during idle periods to prevent UV ink from curing inside the printhead.
• - Auto Humidification: Maintains printhead moisture when the machine is on standby.
• - One-Click Cleaning: Purges ink channels and unclogs nozzles in seconds.
• - White Ink Auto-Stirring: Prevents titanium dioxide particles in white ink from settling, which is a common cause of blockages in industrial UV printers with white ink channels.
Additionally, you should run daily nozzle checks and wipe the encoder strip weekly. Store UV inks in dark, sealed containers kept between 15°C–25°C to maximize their shelf life.
Shipping & What's Included
Every XT-4260 industrial UV printer is shipped in a custom wooden case measuring 1350 × 1240 × 980 mm, and comes with a complete starter kit that includes:
• 1 × XT-4260 UV Flatbed Printer
• 1 × Full 8-Color Ink Set
• Licensed Printing Software, Layout Software and Graphic Design Software
• Power Cord + Data Cable
• 2 × Spare Ink Sacs
• 1 × Pack of Spare Screws
• 1 × Bottle of Moisturizing Liquid
• 1 × Dust-Free Cloth
[Please contact us for information on current lead time, FOB pricing and freight options including air, sea or express courier]
ABOUT US
From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.
ABOUT Wuhan XOTO technology Co.,Ltd
Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.
Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.
We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.
Our Exhibitions
Cooperative Customer
Our Certification
Product Packaging
Special line logistics and transportation,timely delivery
DELIVERY:we have close cooperatian with gaint logstic company
FAQ
Q1. What makes the XT-4260 an 'industrial' UV printer if it is desktop-sized?
The term industrial UV printer refers to the machine's use of industrial-grade components: a servo motor drive system, lead screw Y-axis, precision aluminum vacuum bed, and a commercial-duty ink circulation system not its physical footprint. The XT-4260 delivers industrial reliability and print quality in a compact body that fits a standard workbench.
Q2. Can this industrial UV printer print white ink on dark or transparent substrates?
Yes. The XT-4260 includes a dedicated white ink channel (W) with automatic stirring to prevent sedimentation. You can print white as an underbase on dark materials (wood, metal, glass) or as an overcoat on transparent substrates (acrylic, clear PVC) to achieve an opaque, bright white layer a standard workflow for professional industrial UV printers.
Q3. What is the difference between varnish printing and standard UV printing?
Standard UV printing cures colored inks flat. Varnish printing uses a clear UV-curable lacquer (V channel) applied on top of the color print, creating a raised tactile texture or a high-gloss spot finish that mimics embossing or foil stamping. This feature is only available on industrial UV printers equipped with a varnish ink channel, such as the XT-4260.
Q4. Does the XT-4260 support cylindrical / round objects?
Yes, with the optional rotary attachment. The rotary module connects to the machine's drive system and rotates cylindrical items (wine bottles, mugs, tumblers) in sync with the printhead movement. This makes the XT-4260 a dual-function industrial UV printer capable of both flatbed and cylindrical printing.
Q5. Is this industrial UV printer compatible with Mac OS?
No. The XT-4260 and its bundled RIP software run on Windows only. A dedicated Windows PC (Windows 10 or 11 recommended, minimum 8 GB RAM, Intel Core i5 or equivalent) is required for optimal performance.
Q6. What is the maximum material thickness this industrial UV printer can handle?
The XT-4260 accommodates materials from 0 mm (flat sheet) up to 150 mm thick. The automatic height detection sensor and electric lifting mechanism adjust the printhead carriage to the correct distance automatically No manual measurement needed, reducing the risk of printhead collision common on manually adjusted industrial UV printers.
Q7. How long does printhead maintenance take each day?
The automated maintenance routines (flash spray, humidification, one-click cleaning) run in under two minutes. A daily nozzle check print takes about 30 seconds. Compared to non-automated industrial UV printers that require manual purging, the XT-4260 significantly reduces daily downtime.
Q8. What file formats does the industrial UV printer accept?
The bundled RIP software accepts TIFF, BMP, JPEG, and PDF. For best results, submit print-ready files at the target output resolution (300–600 dpi at 1:1 scale) with embedded color profiles.
Q9. Can I print on fabric or leather with this industrial UV printer?
Yes. UV inks adhere well to porous and semi-porous surfaces including leather, fabric, and canvas when printed at the appropriate ink volume and curing power. For highly absorbent fabrics, a light primer coat is recommended to improve adhesion A standard practice with industrial UV flatbed printers.
Q10. What warranty and after-sales support does provide?
[Please contact our sales team for the latest warranty terms, spare parts availability, remote technical support options, and on-site service coverage for the XT-4260 industrial UV printer]
