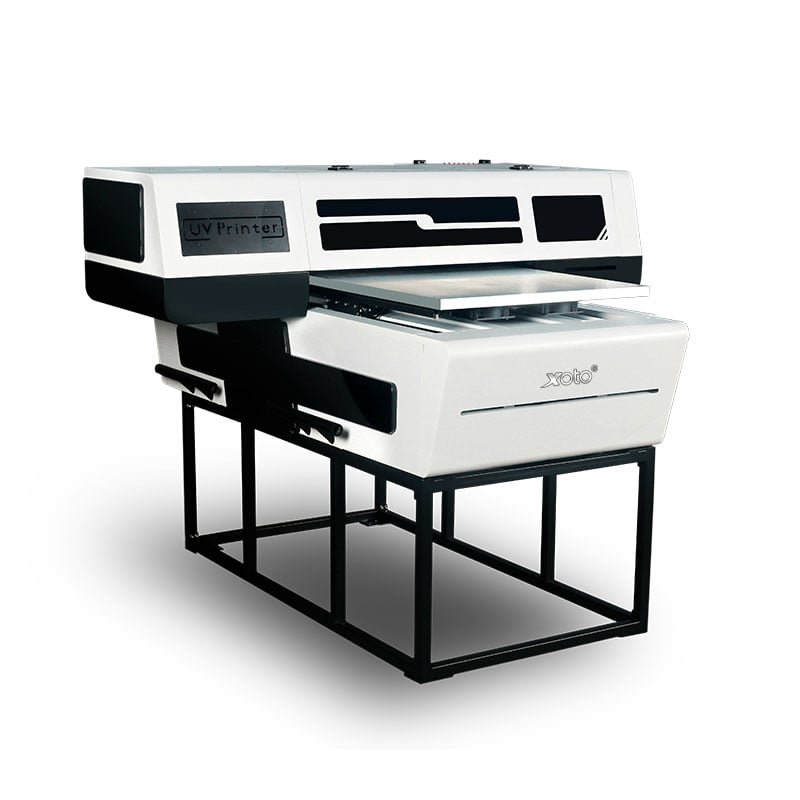

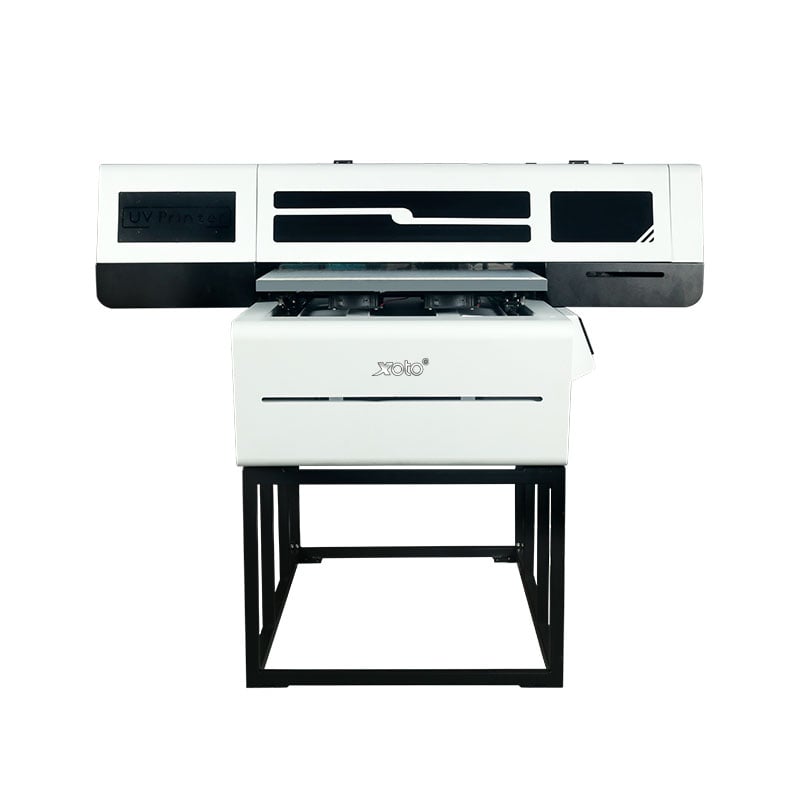

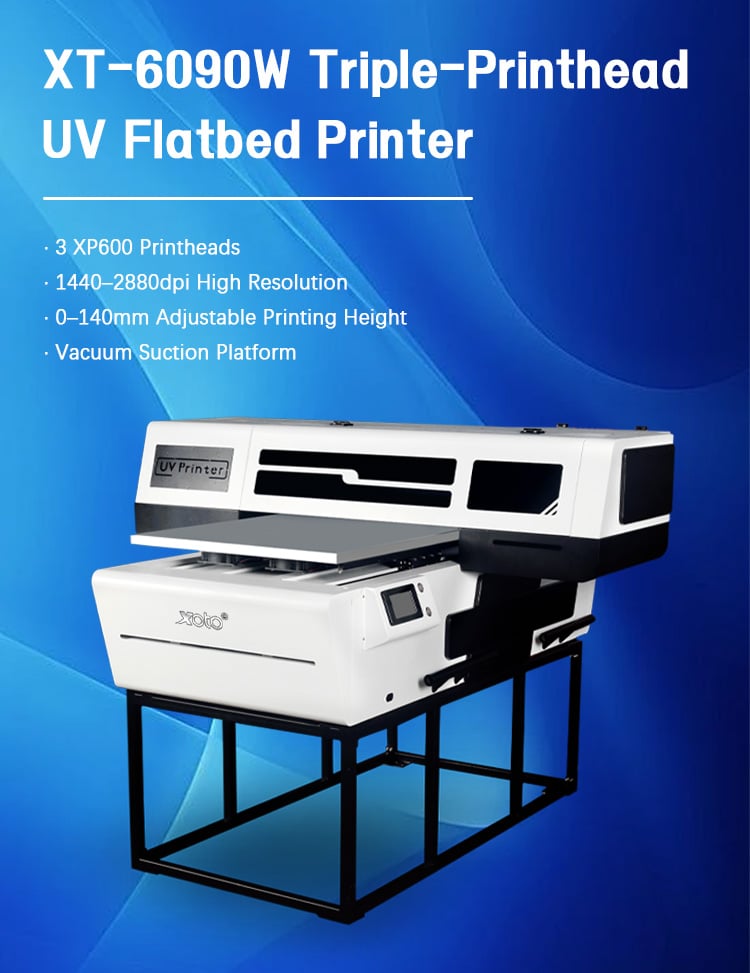

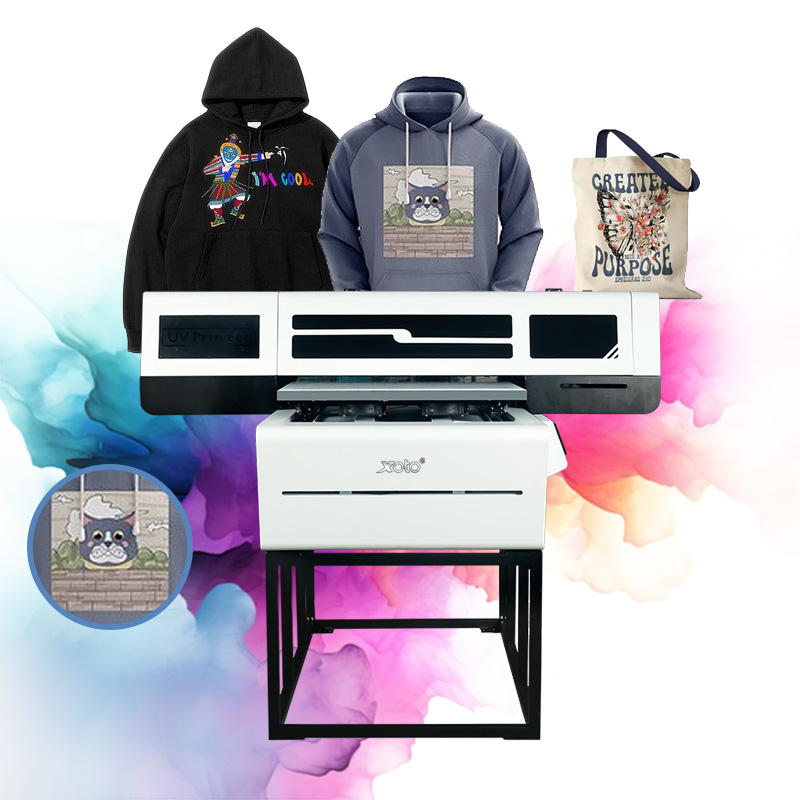

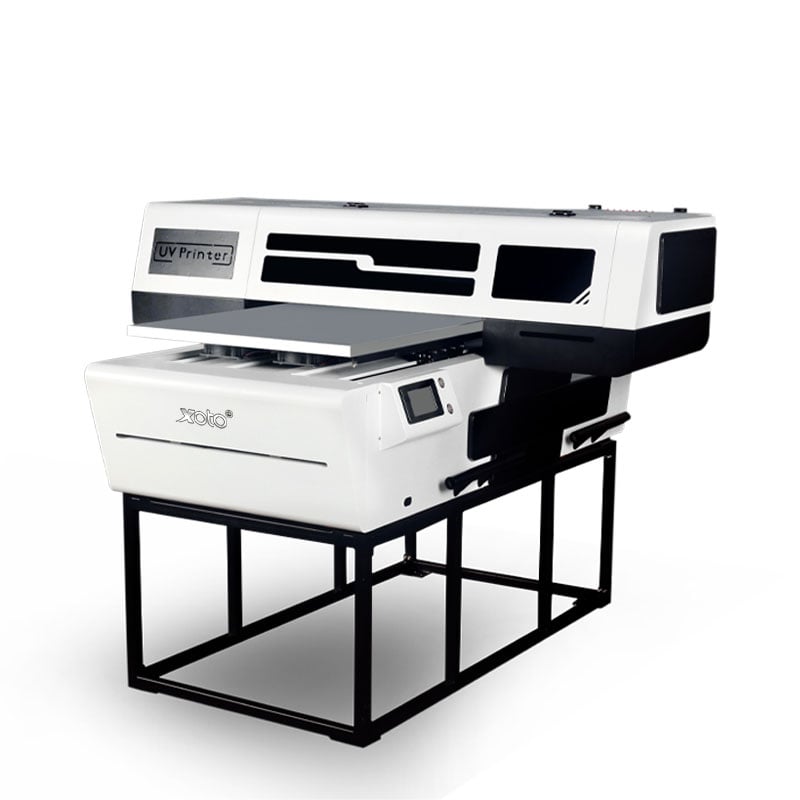

XT-6090W 60*90cm 3 XP600 UV Flatbed Printer 8-Color Varnish Cylinder Custom Print Equipment

This XT-6090W 60*90cm UV flatbed printer has 3 XP600 printheads (i1600 optional). It supports flat, cylindrical and varnish printing, driven by precision servo motors with an electric lifting platform. Its 8-color ink system delivers fine colors for glass, acrylic, fabric, bottles and boards, stable for small orders and mass production.

What are the advantages of choosing the XT-6090W triple-printhead UV flatbed printer?

· This printer comes with three XP600 printheads as standard, with i1600 printheads available as an option. It supports a high resolution of 1440–2880dpi, delivering both faster printing speed and precise, delicate print details.

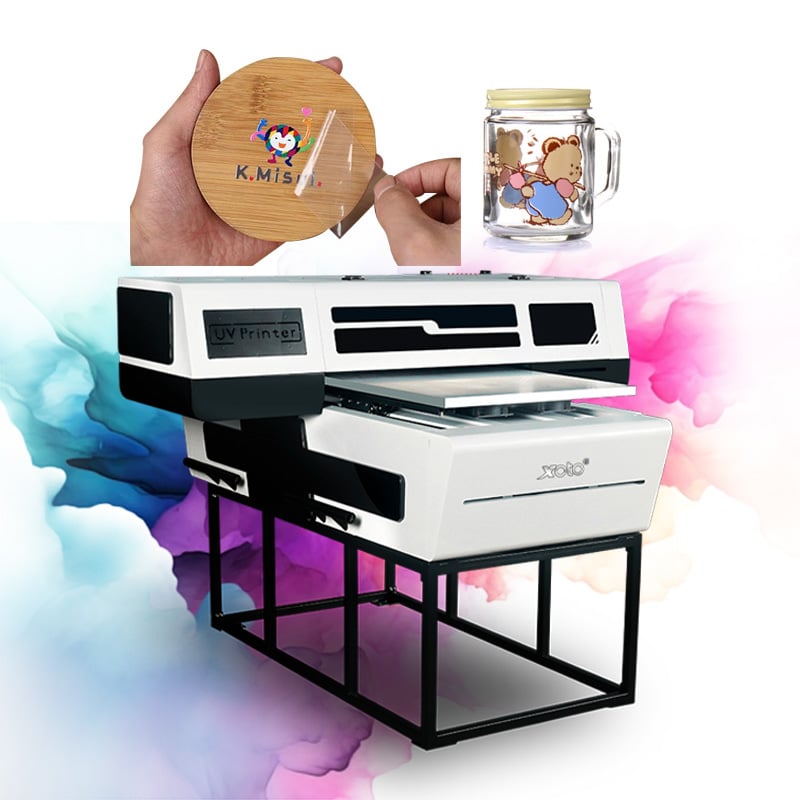

· It supports optional varnish printing and cylindrical printing, allowing a single machine to complete printing on both flat materials and cylindrical products such as wine bottles and vacuum flasks, helping you expand your business scope.

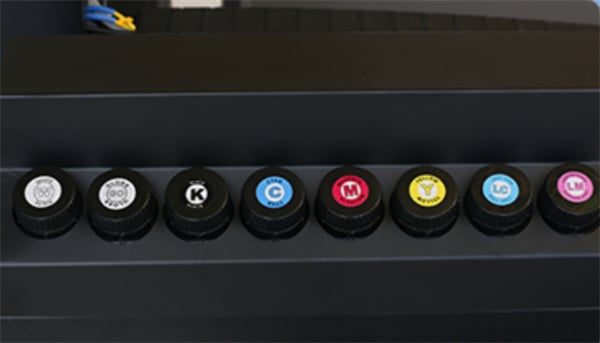

· It adopts an 8-color ink system equipped with pressure-fed ink supply, automatic white ink agitation, and low ink alarm functions. This system prevents white ink sedimentation and avoids unexpected printing failures.

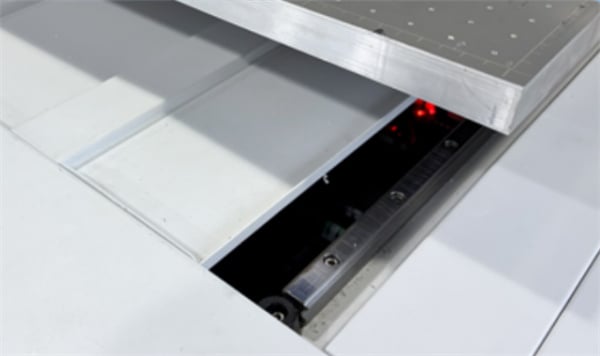

· It features electric printhead lifting with an adjustable height range of 0–140mm to accommodate materials of different thicknesses. It is paired with an aluminum vacuum suction platform that holds materials firmly in place and prevents shifting during printing.

· It is equipped with automatic flash jetting, auto-humidification, and one-click printhead cleaning functions. It can print on a wide range of flat and cylindrical substrates including glass, acrylic, leather, and metal, making it suitable for multiple customization industries.

From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.

ABOUT Wuhan XOTO technology Co.,Ltd

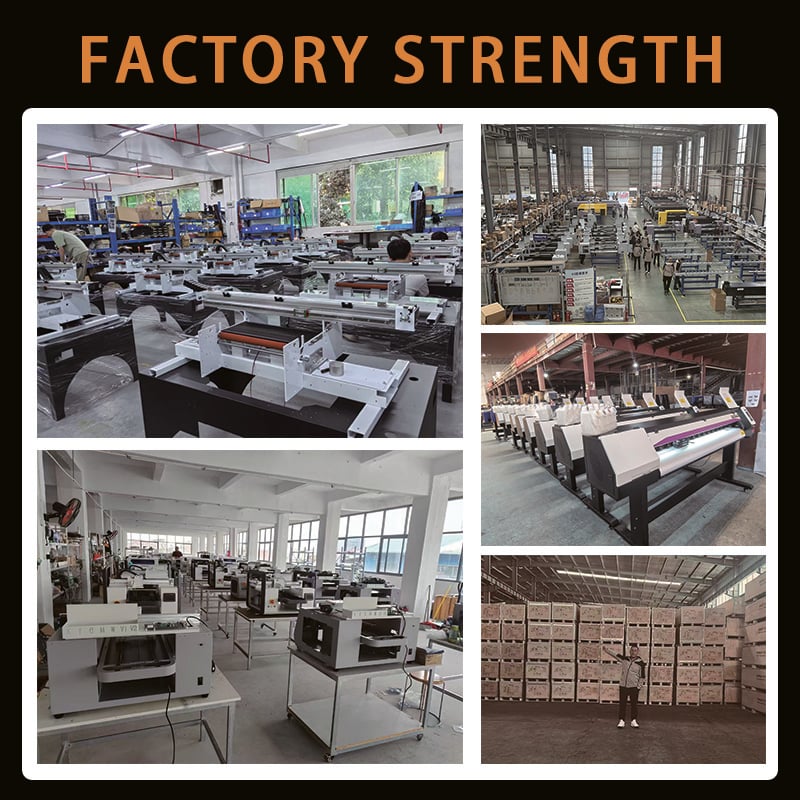

Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.

Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.

We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.

Our Exhibitions

Cooperative Customer

Our Certification

Product Packaging

Special line logistics and transportation,timely delivery

DELIVERY:we have close cooperatian with gaint logstic company

Q1: What is a 6090 UV flatbed printer and what does "6090" mean?

A: A 6090 UV flatbed printer is a professional-grade digital printing machine with a maximum print area of 60 cm × 90 cm (approximately 23.6" × 35.4", or A1 size). The "6090" refers to the bed dimensions in centimeters. It uses UV-curable ink that is instantly dried by built-in UV LED lamps, allowing direct printing onto almost any flat surface — rigid or flexible — without pretreatment. These printers are widely used for customized gifts, signage, packaging prototypes, phone cases, tiles, glass, wood, and more.

Q2: What is the maximum print size of a 6090 UV flatbed printer?

A: The standard maximum print area of a 6090 UV flatbed printer is 600 mm × 900 mm (23.6" × 35.4"). Some models offer a slightly expanded printable zone of up to 610 mm × 915 mm depending on the manufacturer. The maximum object thickness (height clearance) typically ranges from 100 mm to 220 mm, allowing thick items like bottles, plaques, and boards to be printed directly on the flatbed.

Q3: What print resolution does a 6090 UV flatbed printer offer?

A: Most 6090 UV flatbed printers support a print resolution ranging from 720 × 1440 dpi up to 2880 × 2880 dpi, depending on the pass count and printhead model. Entry-level configurations using XP600 printheads typically achieve 720 × 1440 dpi at high speed, while industrial configurations using i3200 or DX5 printheads can reach 1440 × 2880 dpi or higher in fine detail mode. Higher resolution modes (12–16 passes) produce photo-quality output but at slower speeds.

Q4: What printheads are commonly used in 6090 UV flatbed printers?

A: The most common printheads used in 6090 UV flatbed printers include: (1) Epson XP600 — affordable, widely available, good for small businesses; (2) Epson DX5 — durable with high ink compatibility; (3) Epson DX7 — improved nozzle layout vs DX5; (4) Epson i3200 and i1600 — industrial-grade, high-speed, excellent color accuracy; (5) Ricoh Gen5/Gen6 — premium choice for high-volume production. The number of printheads (1–4 heads) directly affects print speed and color channel support (e.g., CMYK + White + Varnish).

Q5: What is the typical print speed of a 6090 UV flatbed printer?

A: Print speed varies by print mode and number of printheads. With a single XP600 head in draft mode, speed is approximately 3–5 m²/hr. With 3 XP600 heads in production mode, speed can reach 12–16 m²/hr. Industrial models equipped with i3200 or Ricoh Gen5 heads can achieve 20–30 m²/hr. Note that high-quality (multi-pass) modes reduce speed significantly — a single A4 image may take 45–120 seconds in photo mode.

Q6: What ink colors/channels are available on a 6090 UV flatbed printer?

A: Standard 6090 UV flatbed printers support CMYK (4 colors) as the base configuration. Premium models offer expanded color channels: CMYK + White (W) for printing on dark or transparent surfaces; CMYK + White + Varnish (V) for gloss coating effects; CMYK + White +Primer for materials with poor adhesion. Some high-end configurations add Light Cyan and Light Magenta for smoother skin tones and gradient reproduction. White ink is particularly important for printing on black, metallic, or transparent substrates.

Q7: What is the weight and dimensions of a typical 6090 UV flatbed printer?

A: A standard 6090 UV flatbed printer typically weighs between 180–280 kg depending on the frame construction (aluminum vs. steel), number of printheads, and built-in ink systems. Machine dimensions are generally around 1500 mm (L) × 1600 mm (W) × 680 mm (H). Some compact desktop versions weigh 80–120 kg and measure approximately 1600 mm × 1700 mm × 780 mm. Always confirm the floor load capacity and door clearance before installation.

Q8: What power requirements does a 6090 UV flatbed printer need?

A: Most 6090 UV flatbed printers operate on 220V / 50–60 Hz single-phase power with a rated power consumption of 800W–2000W, depending on the UV lamp type (LED vs. mercury) and number of printheads. LED UV lamps are far more energy-efficient than mercury lamps, consuming 200–400W vs. 600–2000W. Ensure your facility has a dedicated circuit with proper grounding. Some industrial models require 380V three-phase power — verify specifications before purchase.

Materials & Applications

Q9: What materials can a 6090 UV flatbed printer print on?

A: A 6090 UV flatbed printer can print on an extremely wide range of materials, including: rigid substrates (acrylic, glass, ceramic tiles, wood, MDF, aluminum, stainless steel, PVC board, foam board, marble, leather); flexible materials (PU leather, silicone, fabric sheets); and everyday objects (phone cases, pens, USB drives, trophies, mugs with flat surface adapter, golf balls). The key requirement is that the surface must be flat (or nearly flat) and fit within the 6090 bed dimensions. UV primers are used for low-adhesion materials.

Q10: Can a 6090 UV flatbed printer print on glass?

A: Yes, a 6090 UV flatbed printer can print directly on glass. For best adhesion results, the glass surface should be cleaned thoroughly with isopropyl alcohol and, in many cases, a UV primer or adhesion promoter should be applied before printing. The UV ink bonds well to glass once cured by the UV LED lamp. Common glass applications include decorative glass panels, picture frames, awards, mirrors, and glass bottles (with a cylindrical attachment). Tempered glass prints particularly well with proper surface treatment.

Q11: Can a 6090 UV flatbed printer print on wood?

A: Yes, wood is one of the most popular substrates for 6090 UV flatbed printers. Both raw wood and pre-finished wood surfaces can be printed on. Raw or porous wood may require a UV primer coat to seal the surface and improve ink adhesion. The printer can produce photo-quality images, text, and patterns on wooden plaques, frames, furniture panels, cutting boards, and decorative items. Wood grain can be preserved beneath the printed design for a natural aesthetic. Most UV inks show excellent adhesion on MDF and plywood as well.

Q12: Can a 6090 UV flatbed printer print on phone cases?

A: Yes, printing on phone cases is one of the most popular applications for 6090 UV flatbed printers. The printer can handle hard plastic (PC, ABS), soft TPU, and silicone cases. A flat tray or fixture is used to hold multiple phone cases in position during printing. White ink is applied first when printing on dark-colored or transparent cases to ensure vibrant colors. With the right fixture, a single print pass can cover 20–50 cases at once, making it ideal for customization businesses and phone accessory retailers.
