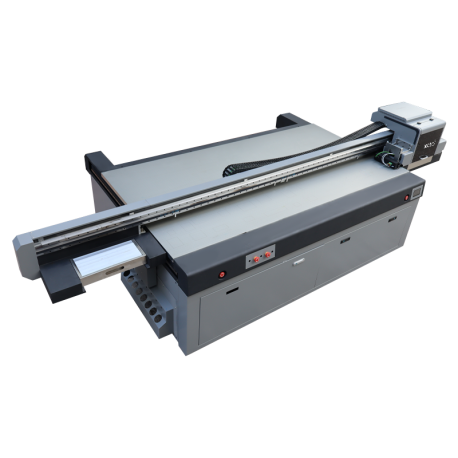

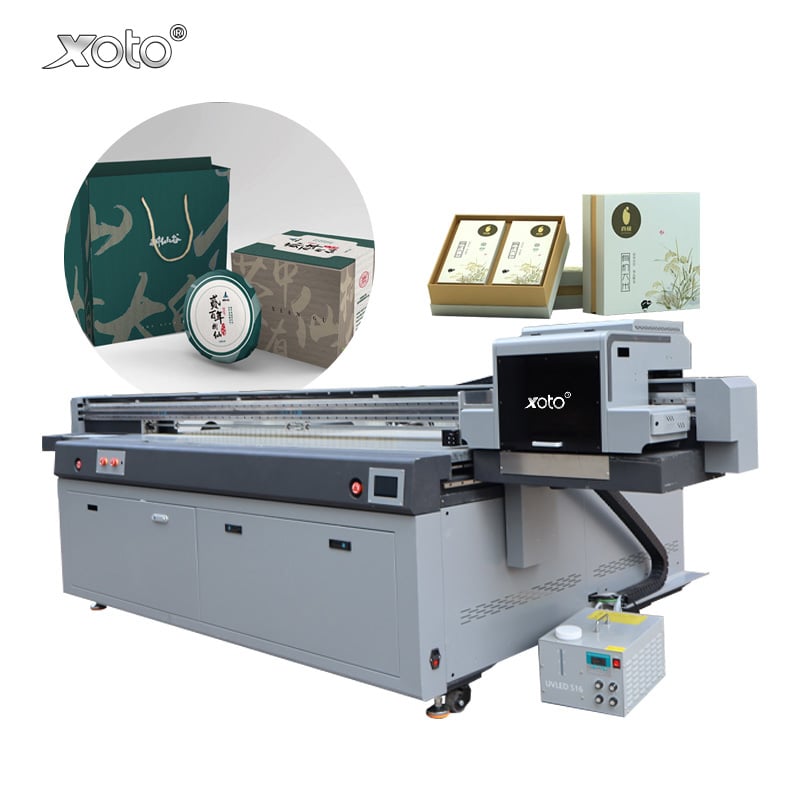

XT-2513 Industrial UV Flatbed Printer 2500 × 1300 mm | 4 Epson Printheads | W+CMYK+V 6-Color | Multi-Material Direct Printing
- Overview
- Product Display
- Product Parameter
- Core Technical Features
- Printable Media
- Product Applications
- ABOUT US
- FAQ
- Recommended Products
Parameters

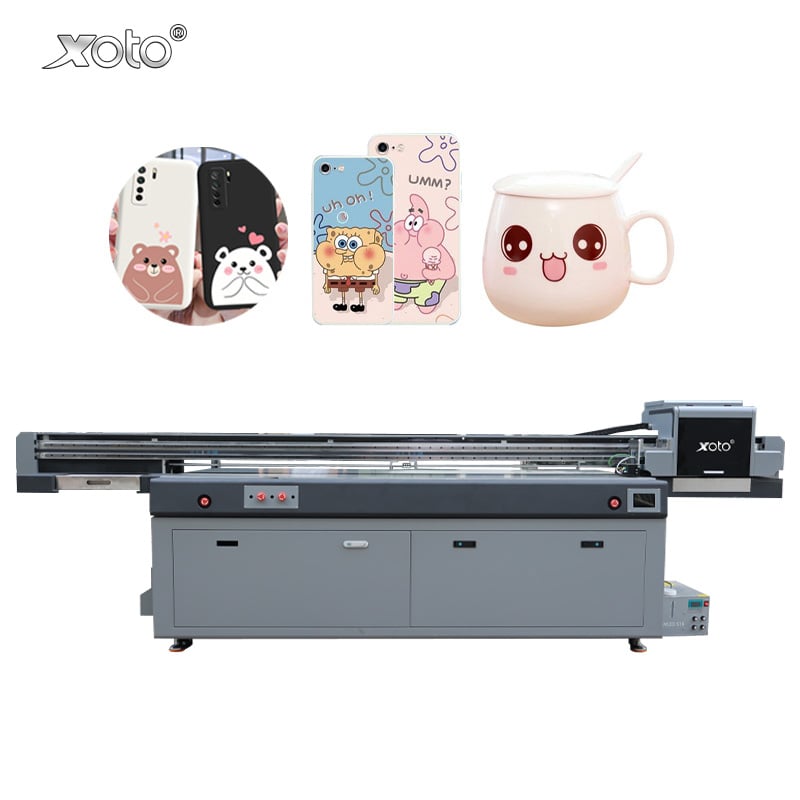

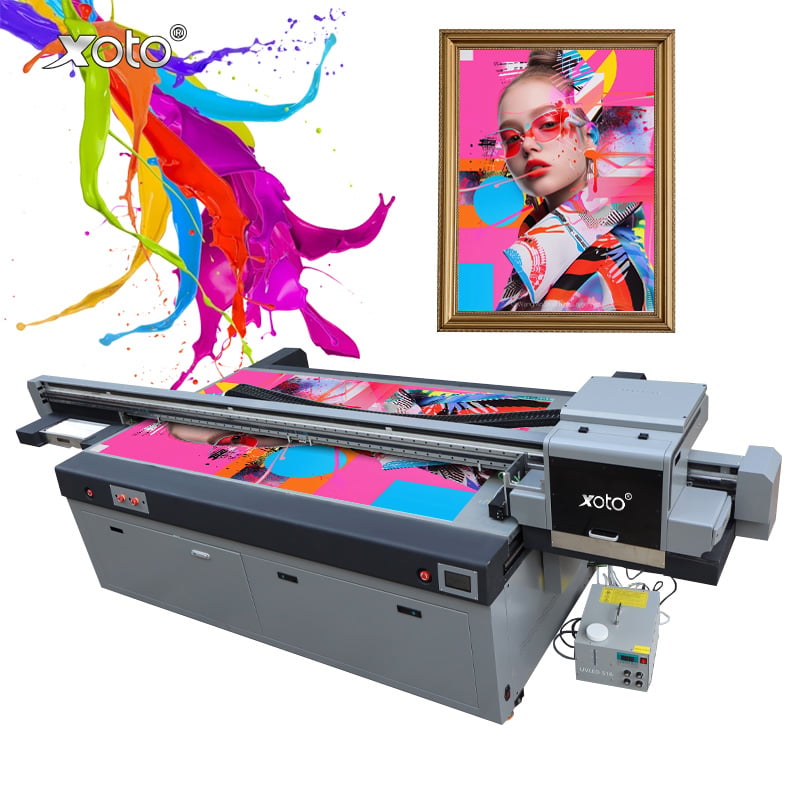

The XT-2513 is a professional industrial large-format UV flatbed printer engineered for high-throughput multi-material digital printing. Built around a 2500 × 1300 mm precision vacuum bed and four genuine Epson printheads imported from Japan, this machine achieves print resolutions up to 2880 dpi on virtually any flat or near-flat substrate. With an adjustable printing height of 0–230 mm, it accommodates everything from thin films to thick wooden boards and acrylic blocks.
The XT-2513's cold-energy LED-UV curing system bonds ink the instant it leaves the printhead, eliminating drying delays and enabling a true print-and-go workflow. Most common low-density materials require no pre-coating, significantly simplifying preparation and reducing per-print costs. Its robust 600 kg industrial frame and dual guide rail / screw drive system guarantee vibration-free output across extended production runs.

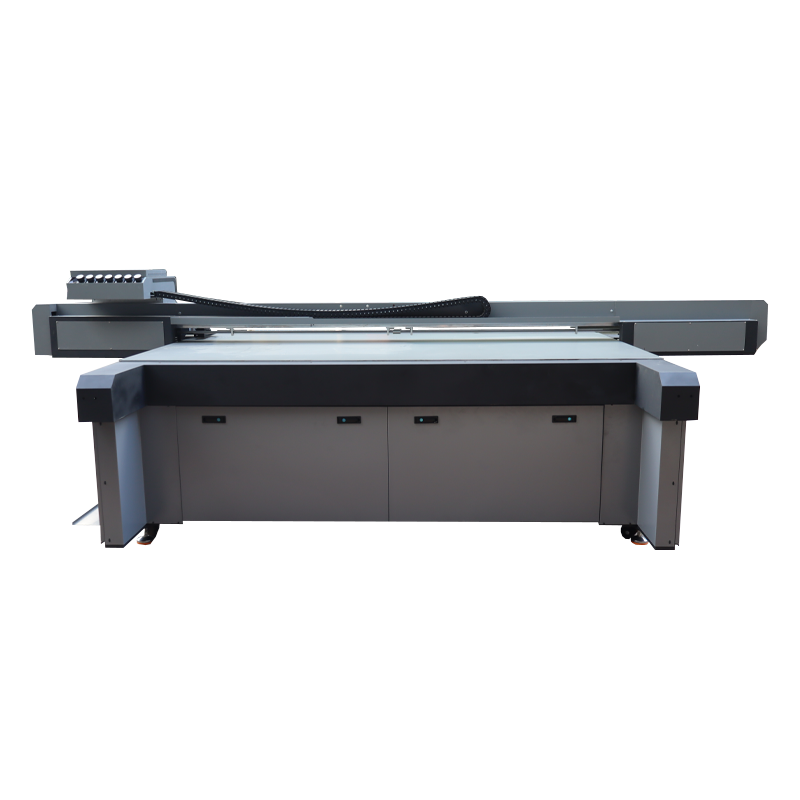

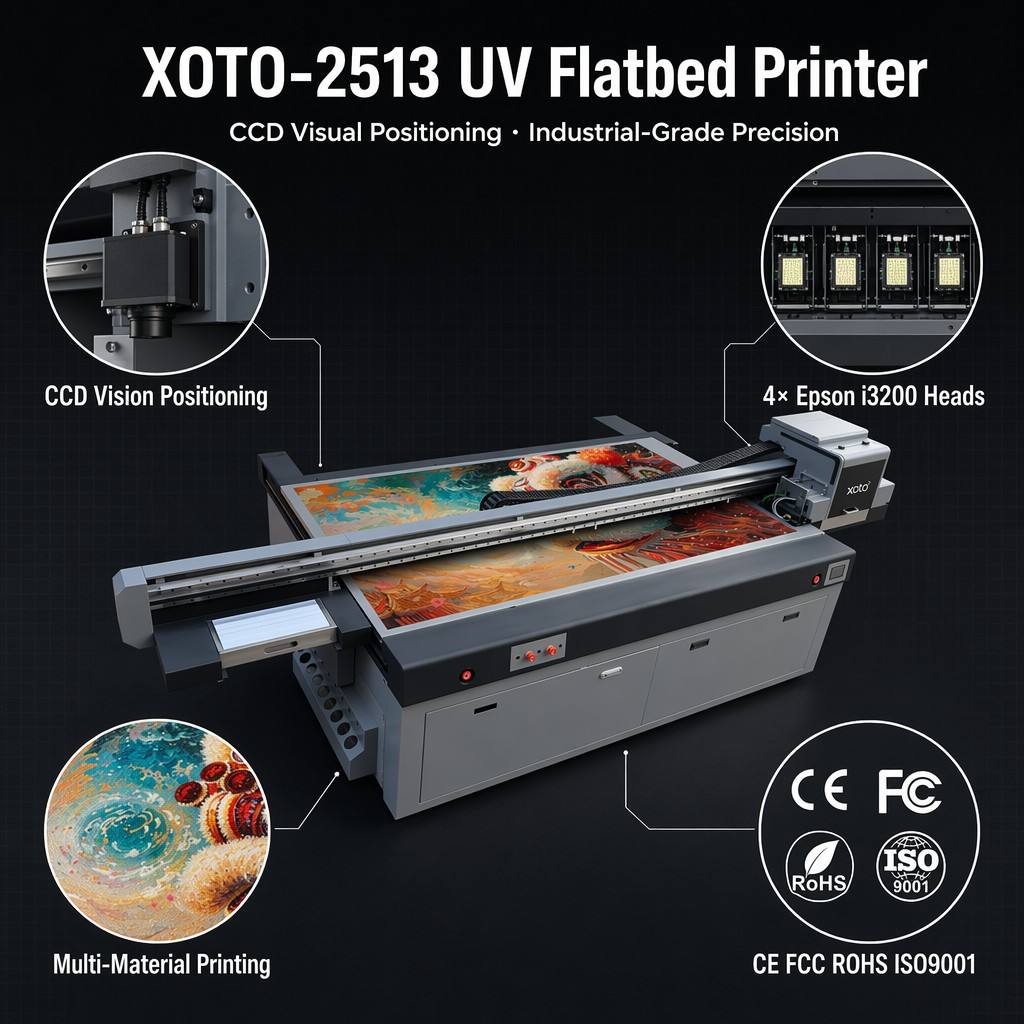

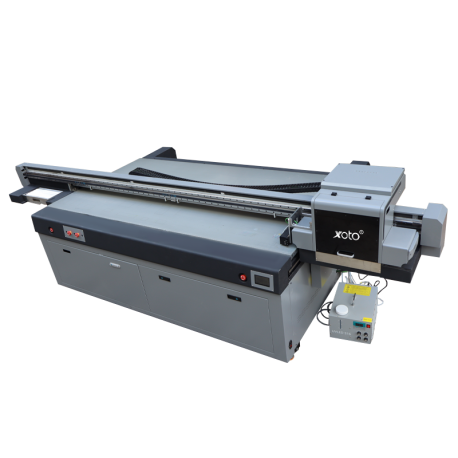

Product Display
Product Parameter
| Model Number | XT-2513 |
| Print Technology | UV-LED Flatbed Inkjet (Piezo-Electric Drop-on-Demand) |
| Print Size (W × L) | 2500 mm × 1300 mm (98.4" × 51.2") |
| Print Height | 0 – 230 mm (0 – 9.06") continuously adjustable |
| Printhead Brand | Epson (Genuine, Imported from Japan) |
| Printhead Configuration | 4 Heads: White + CMYK Color + Gloss Varnish (W+CMYK+V) |
| Print Resolution | 2880 × 1440 dpi / 1440 × 720 dpi / 720 × 720 dpi / 360 × 360 dpi |
| Ink Configuration | W + CMYK + V (6 colors: White, Cyan, Magenta, Yellow, Black, Varnish) |
| Ink Type | UV-curable, anti-clogging, low-VOC, imported high-quality UV ink |
| Ink Bottle Capacity | 500 ml per color — hot-swap refill without machine shutdown |
| Curing System | Cold-energy LED-UV lamp, instant cure, heat-sensitive material friendly |
| Print Platform | Aluminum alloy with built-in vacuum suction, max load 150 kg |
| Drive System | Dual guide rails + screw drive for low noise & high precision |
| Production Speed | ~10 m²/h (4-pass production mode); adjustable by resolution setting |
| Machine Weight | 600 kg |

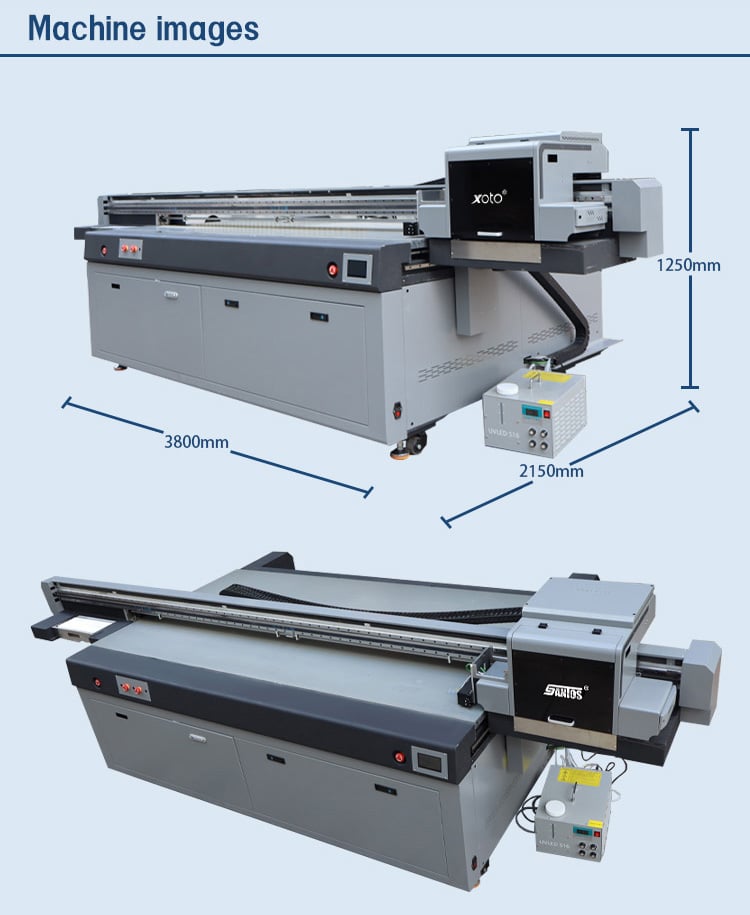

| Machine Dimensions | 3800 mm × 2150 mm × 1250 mm (L × W × H) |
| RIP Software | UltraPrint RIP (compatible with Flexi, RIIN, Maintop) |
| Supported File Formats | TIFF (RGB/CMYK), BMP, PDF, EPS, JPEG, PNG |
| Data Interface | USB 2.0 + Gigabit Ethernet; optical fiber image transmission |
| Power Supply | AC 220–240 V, 50 Hz, max 2000 W |
| Operating Temperature | 20°C – 30°C (optimal); storage min –35°C |
| Operating Humidity | 40% – 80% RH (non-condensing) |
| OS Compatibility | Windows 7 / 8 / 10 / 11 (32-bit & 64-bit) |
| Warranty | 1 year comprehensive (printheads & ink channels excluded); lifetime paid maintenance |
| Operator Training | Included — professional engineer on-site or remote training to full proficiency |
| Workshop Planning | Included — engineer-led layout planning & installation guidance |
Core Technical Features
The XT-2513 integrates six purpose-built engineering solutions that distinguish it from standard-grade UV flatbed printers:

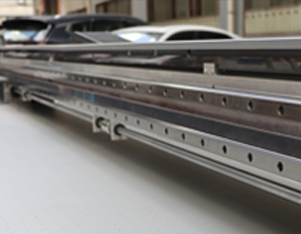

Dual Guide Rail System
Precision dual guide rails ensure ultra-smooth, low-vibration printhead travel across the full 2500 mm print width. Eliminates lateral deviation and banding artifacts, producing sharp edges and consistent line quality even at high speeds.

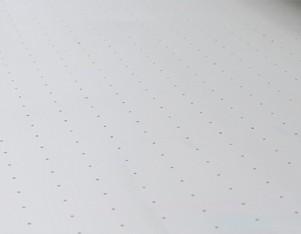

Aluminum Vacuum Suction Platform
The entire print bed features a built-in vacuum suction system. Thin, soft, or flexible substrates are held flat and motionless during printing without clamps or tape, preventing position drift and enabling precise edge-to-edge printing.

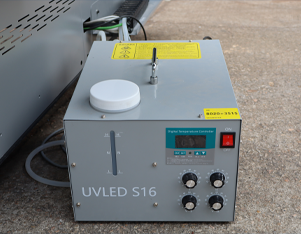

Cold-Energy LED-UV Curing Lamps
Cold-energy LED-UV lamps cure ink instantly upon deposition, generating minimal heat. Suitable for heat-sensitive materials such as thin films, foam boards, and PVC. Most low-density substrates require no pre-coating, saving preparation time and cost.

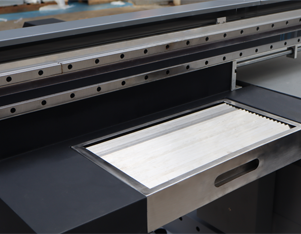

Dedicated Printhead Maintenance Station
An integrated maintenance station provides rapid ink residue clearing and nozzle conditioning. Routine cleaning takes seconds, keeping all four Epson printheads in peak condition and reducing the risk of clogging during long production runs.

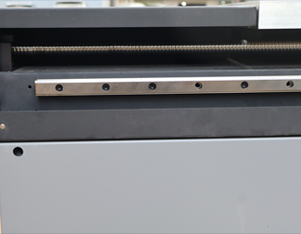

Screw Drive System
The Y-axis screw drive mechanism delivers lower operating noise, higher positioning accuracy, and reduced mechanical wear compared to belt-driven designs. Ensures repeatable precision across thousands of print cycles.

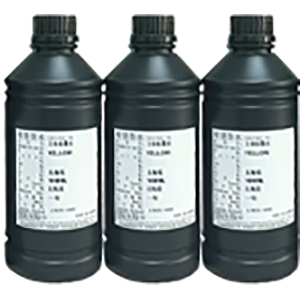

500 ml Independent Ink Bottles per Color
Each ink color is supplied by a dedicated 500 ml high-capacity bottle. Ink can be refilled at any time without stopping the machine or power-cycling, ensuring continuous uninterrupted production during large-volume runs.
Printing Process — 4 Simple Steps
The XT-2513 streamlines production into four straightforward steps, minimizing operator training requirements and maximizing daily throughput:
-

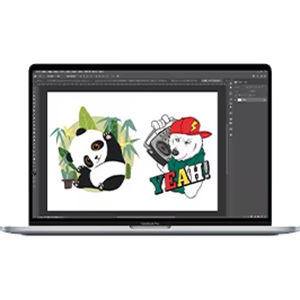

Design Pattern
-
Add UV Ink
-
Printing
-
Finished Product
Printable Media
The XT-2513's LED-UV curing system enables direct-to-substrate printing on an exceptionally wide range of materials with no pre-coating required for most substrates:
-
Wood
-
Stone
-
Ceramic
-
Glass
-
Metal
-
Acrylic
-
PVC
-
Plastic
Leather
Product Applications
The XT-2513 serves a broad spectrum of industries and use cases. Below are representative applications across six sectors:
Promotional Gifts & Custom Merchandise
-
Phone Cases
-
Wooden Cup Holders
-
Glass Cups
Industrial Labels & Signage
-
Metal Nameplates
-
Acrylic Display Boards
-
Decorative Paintings
Advertising & Outdoor Signage
-
Car Stickers
-
Gift Boxes
-
Road Signs
Large-Format Prints & Displays
-
Carpet Printing
-
Billboard Graphics
-
Translucent Film
Textile & Soft Goods
-
Canvas Bags
-
Flags & Banners
-
T-Shirts
Home Textiles & Decor
-
Table Cloth
-
Curtains
-
Bed Covers
Why Choose the XT-2513 UV Flatbed Printer?
Compared to competing 2513-class UV flatbed printers, the XT-2513 delivers five decisive advantages:
| Advantage | What It Means for Your Business |
| Large-Format + Multi-Material Versatility | 2500 × 1300 mm bed and 0–230 mm height clearance covers the widest range of order sizes. W+CMYK+V six-color ink handles acrylic, metal, leather, wood, and 200+ other substrates — one machine replaces multiple specialized printers. |
| Genuine Epson Printhead Quality | Factory-sealed Epson printheads from Japan deliver verified 2880 dpi resolution, stable ink droplet size, and reliable long-term performance. Auto moisturization station + anti-clogging UV ink ensure consistent quality and low maintenance cost. |
| Superior Mechanical Design | Dual guide rails and screw drive eliminate printing deviations caused by vibration. Aluminum vacuum suction platform secures even the thinnest materials without mechanical fixturing. Optical fiber data transmission ensures stable large-file output. |
| Uninterrupted Production Workflow | LED-UV instant curing means zero drying time — prints are immediately ready for finishing or packaging. 500 ml hot-swap ink bottles per color enable ink refills without halting the machine, minimizing production interruptions. |
| Complete After-Sales Ecosystem | Every purchase includes on-site engineer training (until proficiency is achieved), workshop layout planning, 1-year warranty, and lifetime paid maintenance. Remote technical support keeps your machine running even after the warranty period. |
ABOUT US
From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.
ABOUT Wuhan XOTO technology Co.,Ltd
Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.
Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.
We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.
Our Exhibitions
Cooperative Customer
Our Certification
Product Packaging
The XT-2513 is shipped in a reinforced export-grade wooden crate with custom foam cushioning. We partner with top-tier global logistics providers for sea freight, air freight, and door-to-door delivery. Professional packing ensures safe arrival in any destination country.
FAQ
The following questions and answers address the most common inquiries from new and prospective XT-2513 customers. Additional technical documentation is available upon request.
Q: What industries and applications is the XT-2513 suitable for?
A: The XT-2513 is ideally suited for signage and advertising production, gift and souvenir customization, home decoration and interior design, textile and apparel printing, packaging prototyping, industrial labeling, and fine art reproduction. It supports flexible substrates (adhesive labels, PVC, reflective films, canvas, leather) and rigid substrates (glass, tiles, metal, ceilings, aluminum plates, wood panels, acrylic, foam boards, corrugated cardboard).
Q: Why does cleaning one color cause other non-blocked colors to also lose ink?
A: The four printheads share a single large ink pad and unified ink extraction system. When the cleaning function activates, all four heads consume ink simultaneously. While this keeps the structure simple and maintenance cost low, regular cleaning cycles do use more ink than single-head systems. We recommend scheduling cleaning during planned production breaks to minimize waste.
Q: Why does the printed image have stray colors or color spots in the white ink?
A: This is typically secondary contamination from an excessively dirty wiper blade or ink pad. During printing, the wiper blade can carry residual ink from one nozzle to another, or waste ink accumulated on the ink pad can be drawn back. Solution: Manually wipe the nozzle surface and blade with a dust-free cloth, then perform a thorough ink flush to clear any trapped colored ink from the nozzle channels.
Q: Will thin or soft materials shift during printing?
A: No. The aluminum alloy printing platform features built-in vacuum suction that automatically holds thin, soft, and flexible materials flat and motionless throughout the printing process. No clamps, tape, or additional fixturing is required, even for the most delicate substrates.
Q: How should the large ink pad and wiper blade be maintained?
A: Daily: Wipe the entire wiper blade completely clean — hardened ink residues on the blade can scratch the nozzle surface. Weekly: Inspect the rubber seal ring of the ink pad for hardened ink deposits or micro-cracks. Damaged seals prevent proper vacuum absorption, which can lead to ink depletion across all printheads. Replace the ink pad if damage is detected.
Q: If white ink is left unused for an extended period, will it affect the other color nozzles?
A: Yes, indirectly. White ink contains titanium dioxide, which precipitates and solidifies if left stagnant. Solidified white ink on shared ink pads compromises the seal integrity, causing ink leakage during cleaning of color or varnish nozzles and preventing proper ink delivery. Always circulate or clean white ink channels if the machine will be idle for more than 2–3 days.
Q: Do UV flatbed printers produce strong odors? Are they safe to operate indoors?
A: Before curing, UV ink has a characteristic chemical odor. After LED-UV curing exposure, the ink becomes essentially odorless. Always ensure adequate ventilation during machine operation. Wear rubber gloves when refilling ink or performing maintenance to prevent skin contact with liquid ink, which may cause allergic reactions in sensitive individuals.
Q: How can I tell if a printhead nozzle is aging and needs replacement?
A: Three indicators signal end-of-life for a nozzle: (1) Severe oblique spraying or ink scatter — test strips show uneven lines and image edges show pronounced ghosting that cannot be resolved by software cleaning. (2) Frequent ink shortages in a specific color — the color runs out quickly after a short print segment; cleaning temporarily resolves it but the problem immediately recurs. (3) Physical surface scratches or permanent blockages — certain nozzle rows fail completely, leaving permanent white gaps on test strips. If any of these conditions persist after thorough cleaning, schedule nozzle replacement.
Q: What is the typical return on investment (ROI) for the XT-2513?
A: Based on typical market pricing, UV-printed products sell for $15–$40+ per square meter while production costs average $2–$3 per square meter. With the XT-2513's production capacity of approximately 10 m²/h, most customers in active markets achieve full equipment ROI within 6–12 months. Custom gift and promotional product applications typically yield the highest margins.
Q: What is the delivery timeline and shipping method?
A: Standard production lead time is 7–15 business days. We offer sea freight (most cost-effective for large shipments), air freight (fastest, ideal for urgent orders), and door-to-door express service. All machines are shipped in export-grade reinforced wooden crates. We coordinate with freight forwarders to ensure safe, trackable delivery to any destination worldwide.
Q: Is OEM or ODM customization available?
A: Yes. Wuhan XOTO Technology operates its own factory in Guangzhou, China, enabling full OEM branding (custom logos, color schemes, documentation) and ODM configuration modifications. Minimum order quantities and lead times for custom configurations are available from our sales team.
