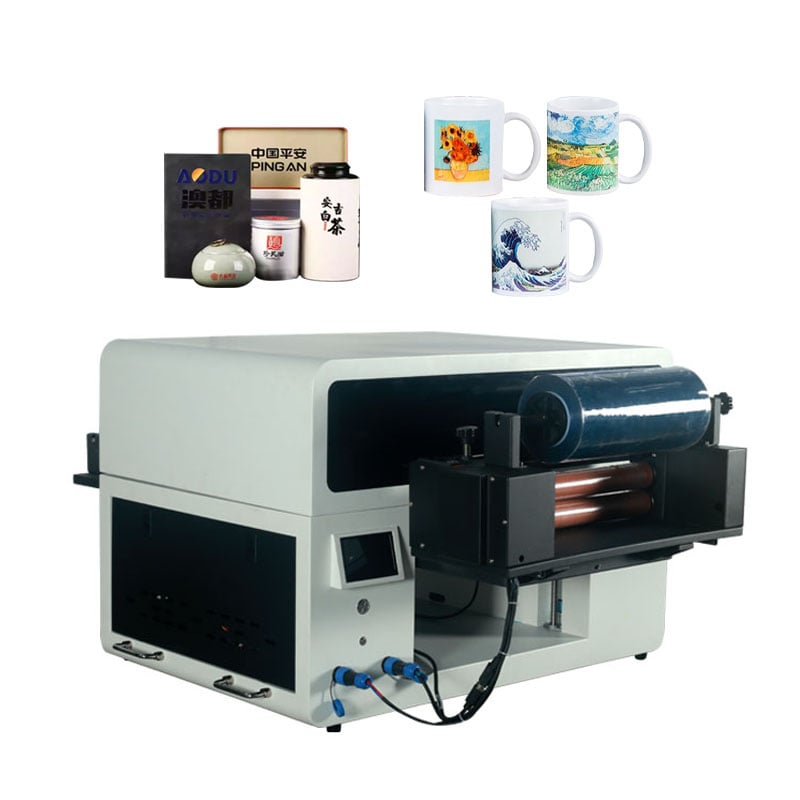

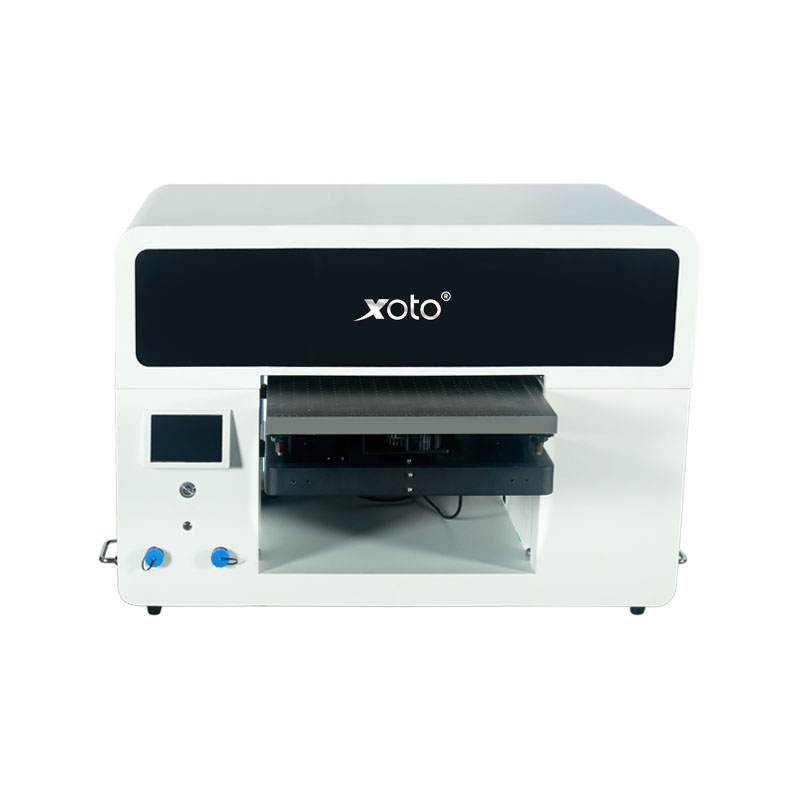

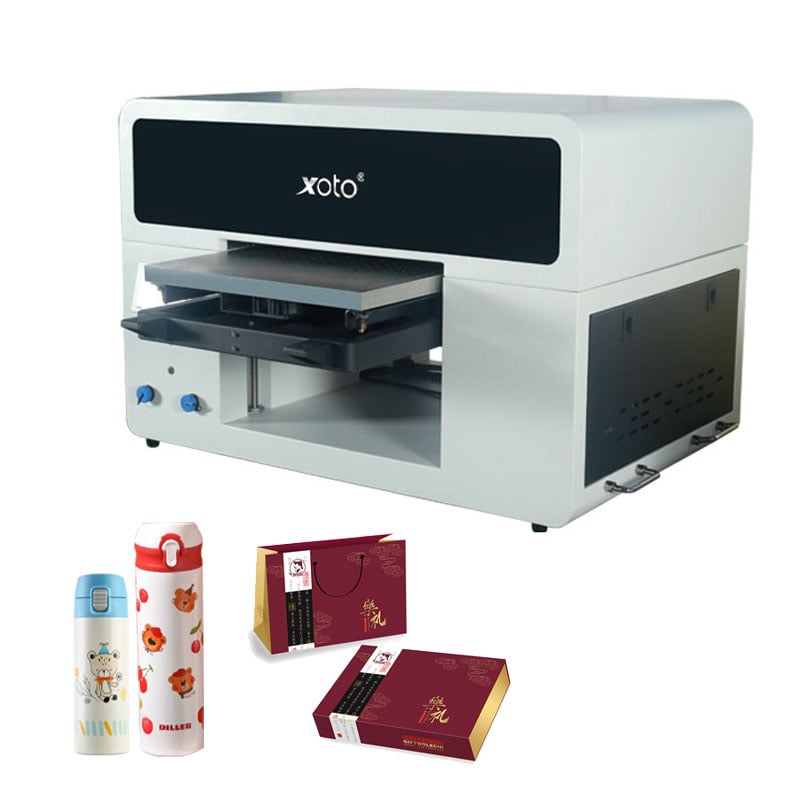

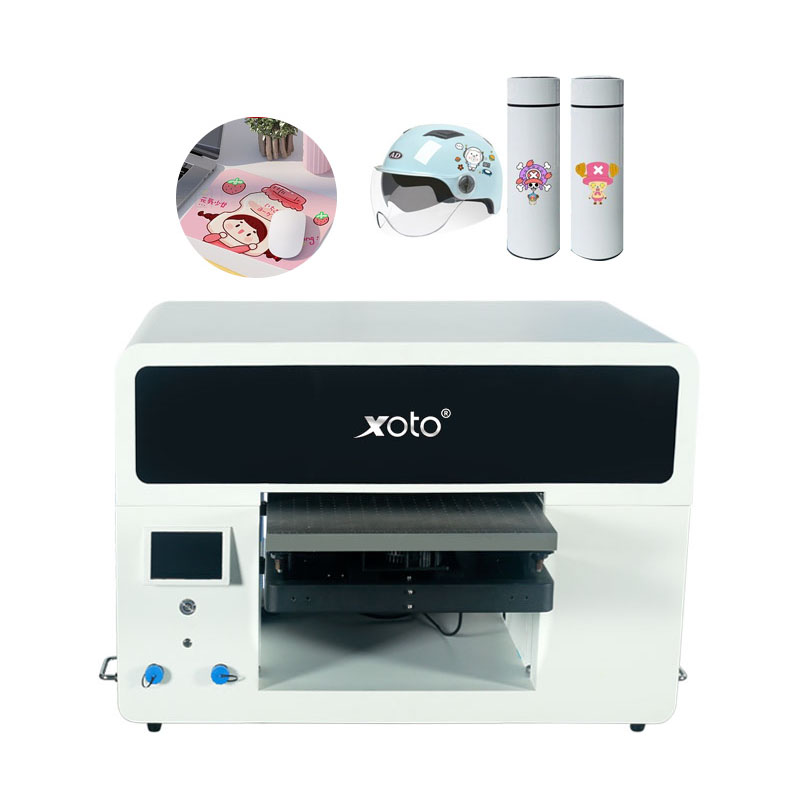

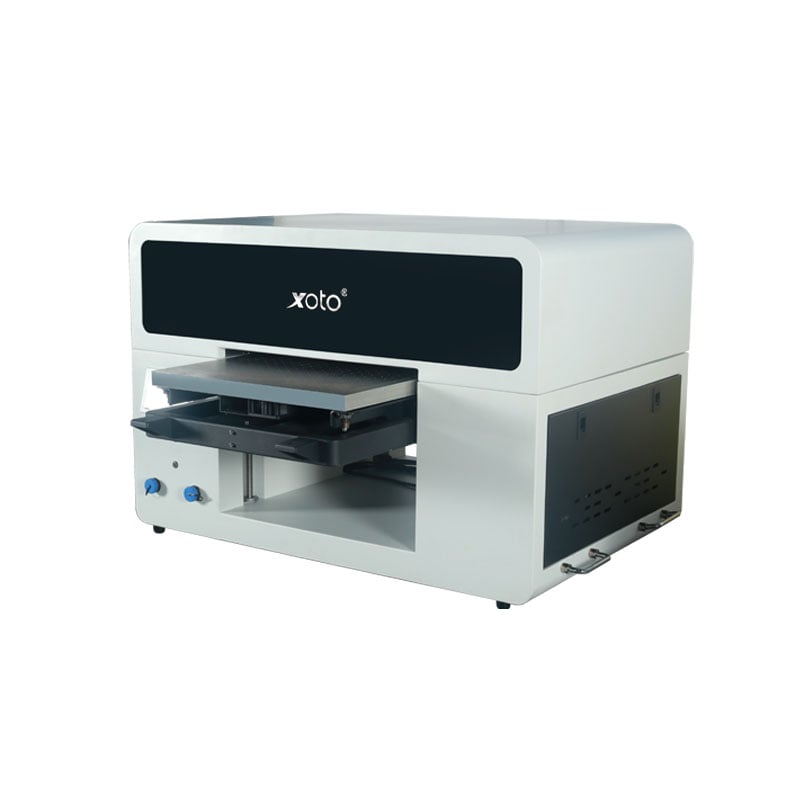

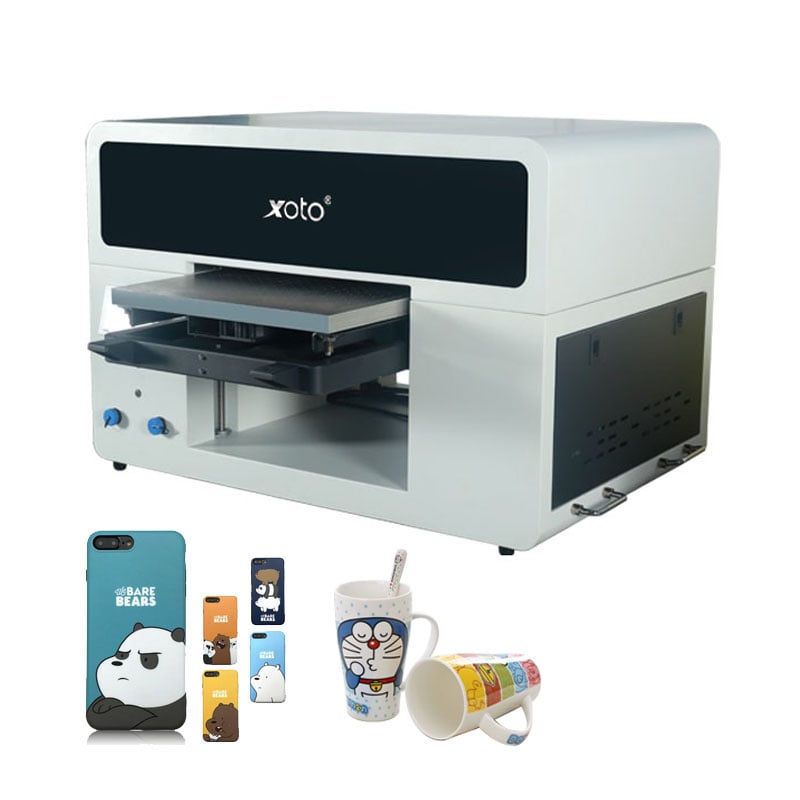

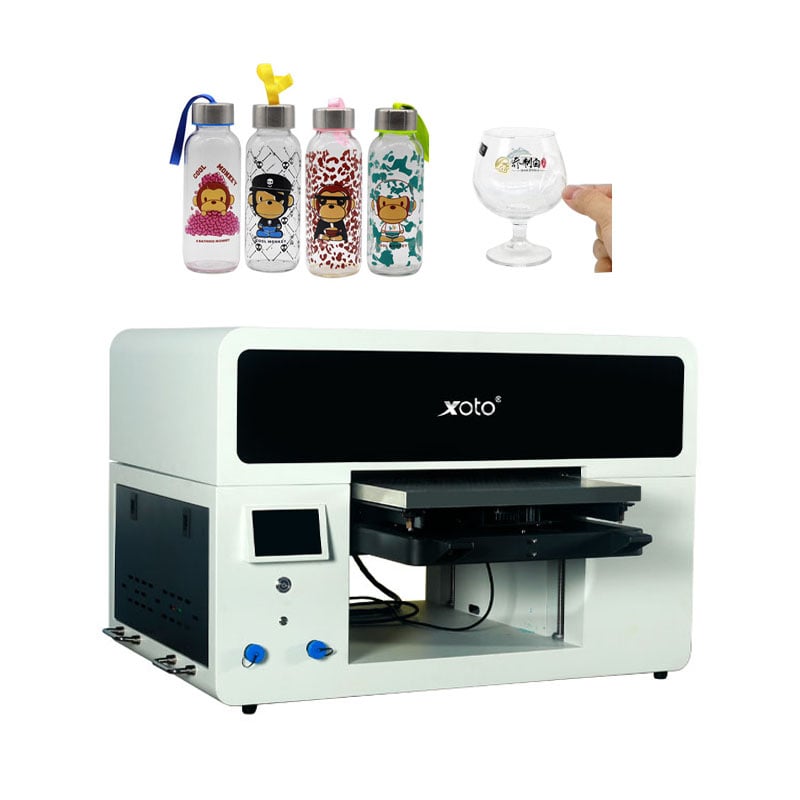

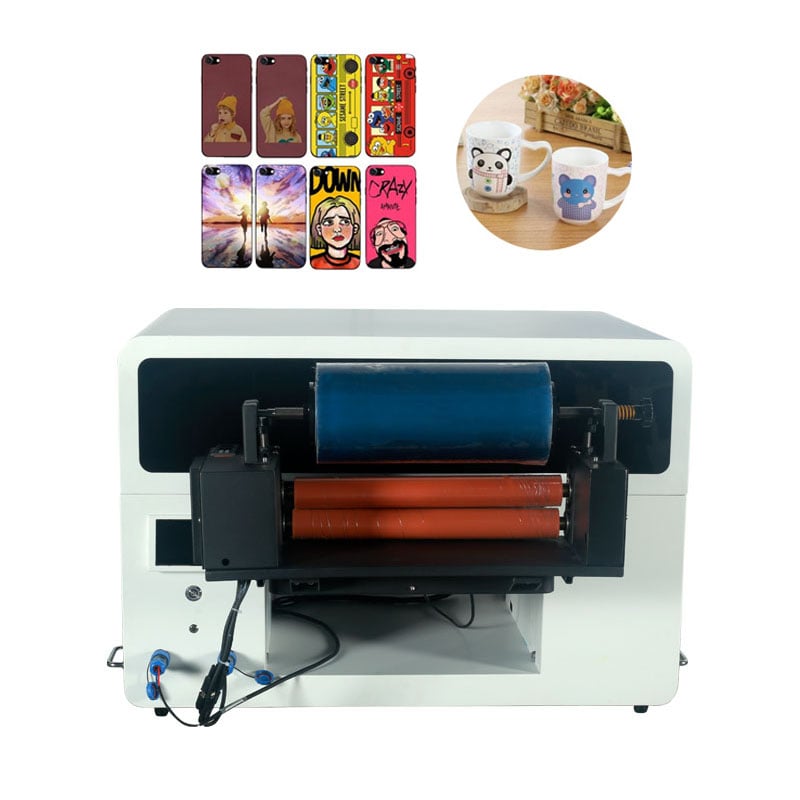

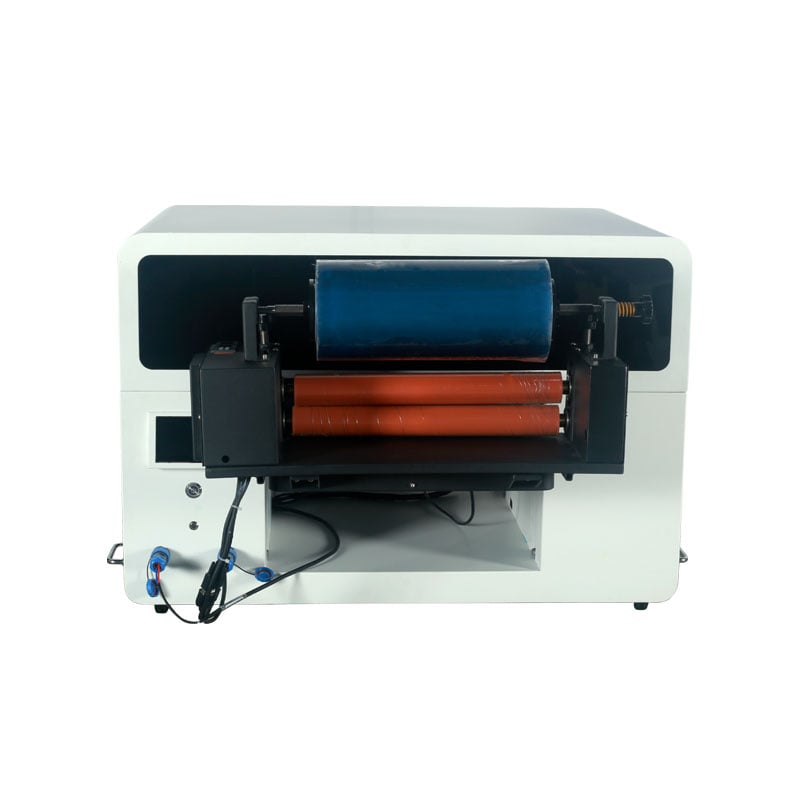

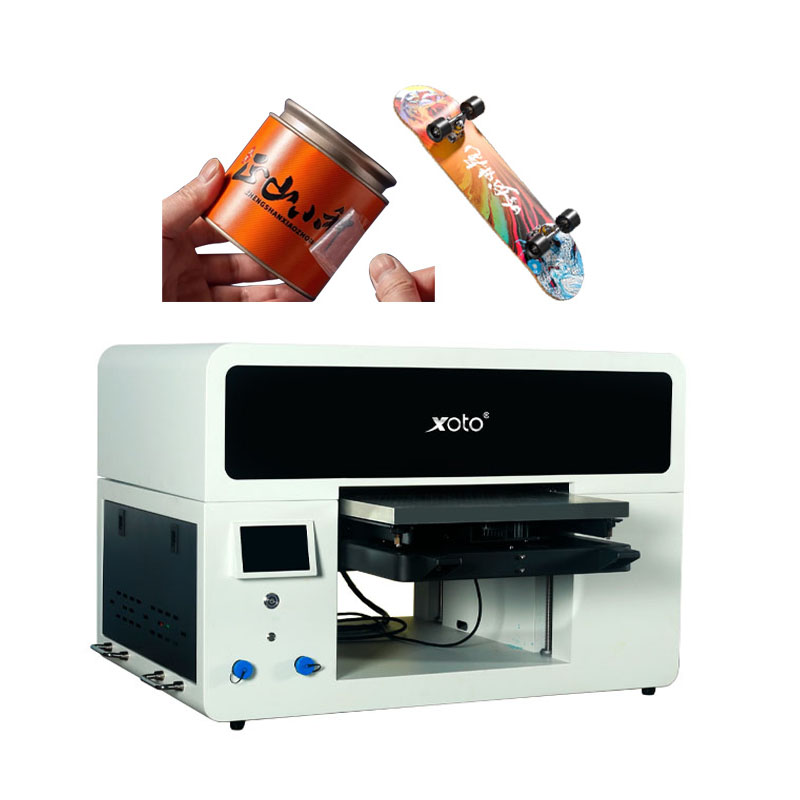

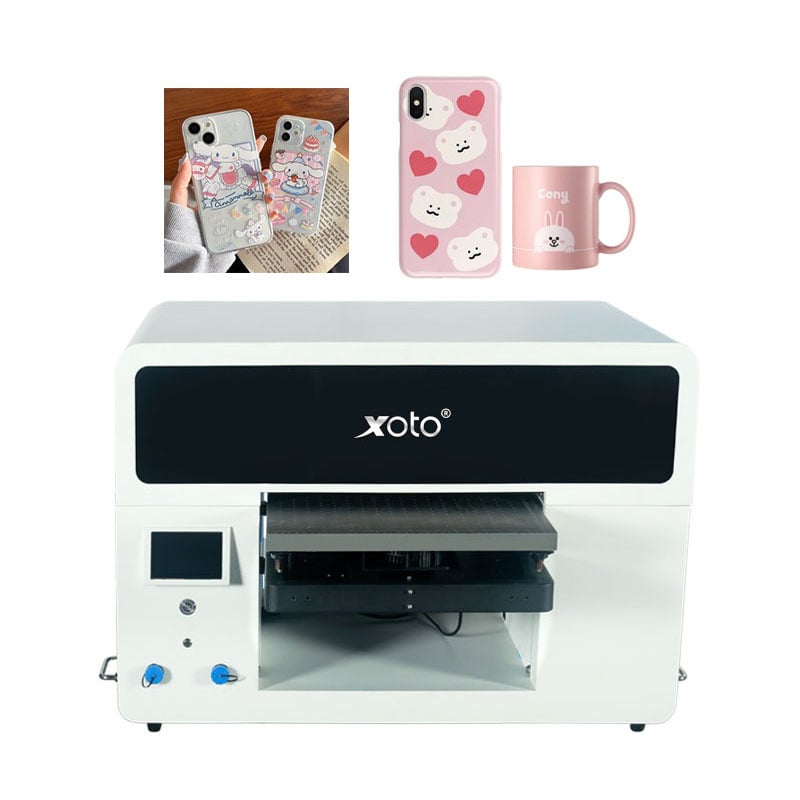

XT 4050Plus Roll Flat UV Printer 40*50cm Dual Nozzle 8 Color For Fabric Glass Cylinder Cup

What are the advantages of the XT 4050 roll-fed UV hybrid printer?

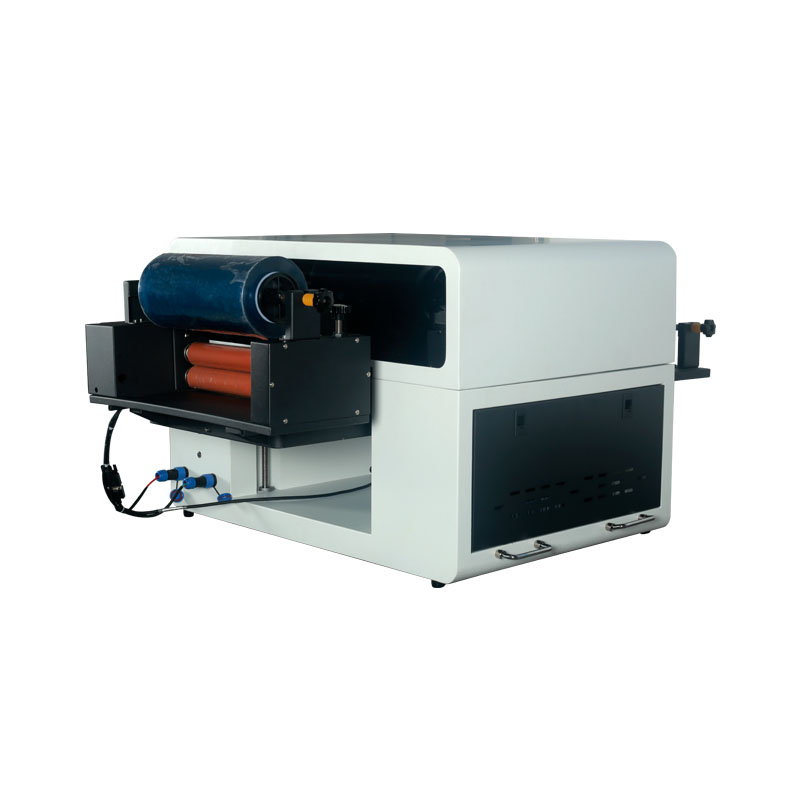

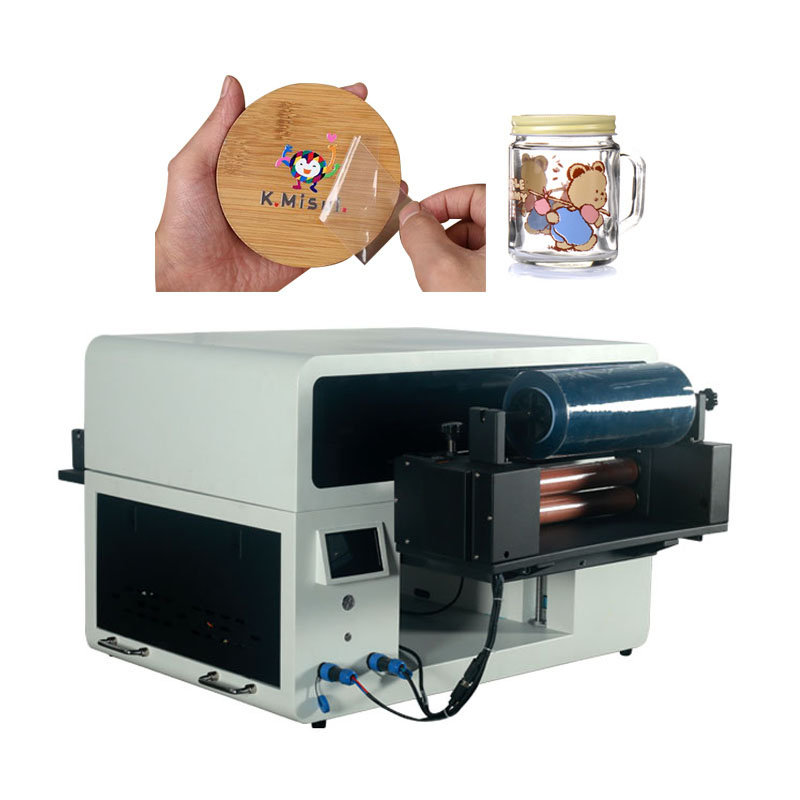

1) The XT 4050 roll-to-flat UV hybrid printer integrates flat, roll, and optional cylindrical printing functions in a single device, capable of printing on a wide range of substrates such as glass, wood, fabric, leather, and cups to meet various custom small-batch printing demands.

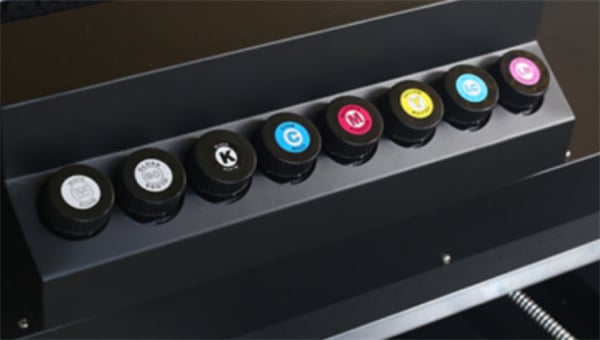

2) It is fitted with dual nozzles and a full 8-color ink system equipped with automatic white ink mixing, which delivers vivid, highly color-accurate, and delicate printing results with excellent ink dot performance.

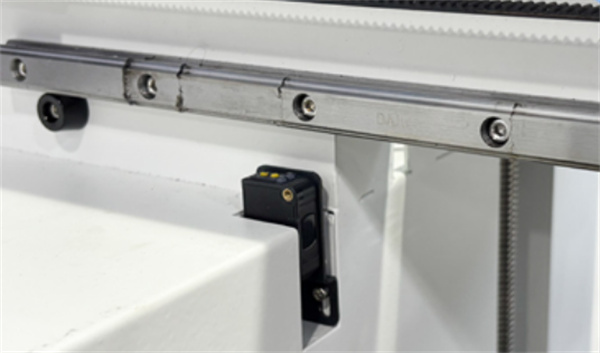

3) This machine adopts a high-precision servo motor and an aluminum suction printing platform, paired with automatic elevation measurement and an electric lifting structure to maintain consistent printing clearance and avoid print head collision. One-click automatic nozzle flashing and moisturizing maintenance can effectively prevent nozzle clogging and reduce breakdown frequency.

4) It supports multiple common image formats, only works with Windows systems, and is compatible with AC110V and AC220V dual-voltage power supplies to adapt to different regional operating environments. With a compact body and a light weight of approximately 100 kilogram, it saves valuable workshop space.

5) Complete supporting software and spare accessories are delivered together with the machine. It features stable operation, simple operation, and reliable, worry-free after-sales service, delivering consistent printing efficiency for personalized customization businesses.

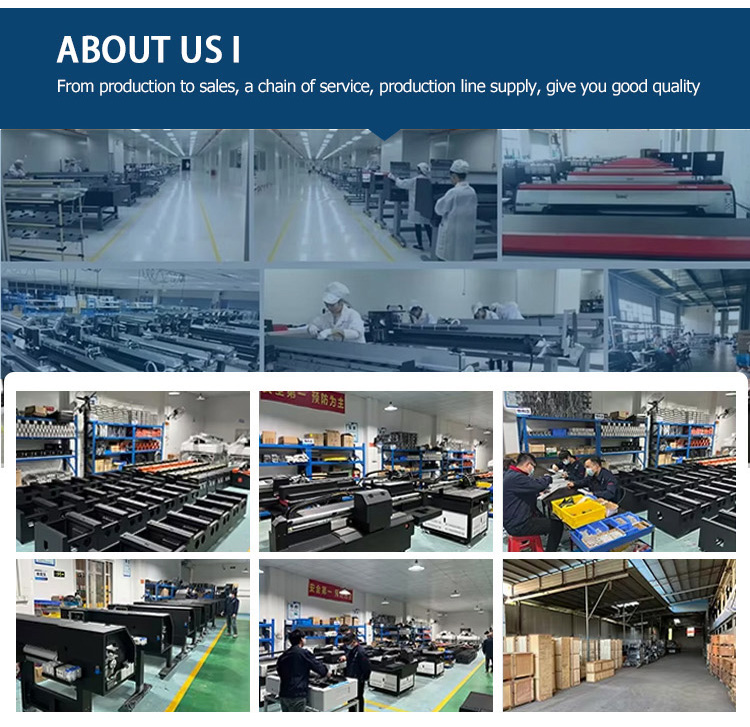

From production to sales, we offer a chain of services and production line supply to provide you with high - quality products.

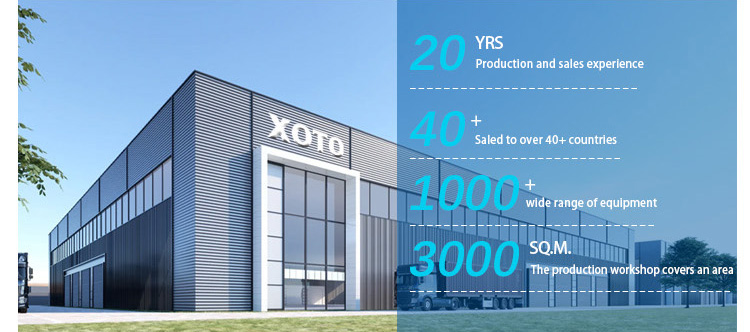

ABOUT Wuhan XOTO technology Co.,Ltd

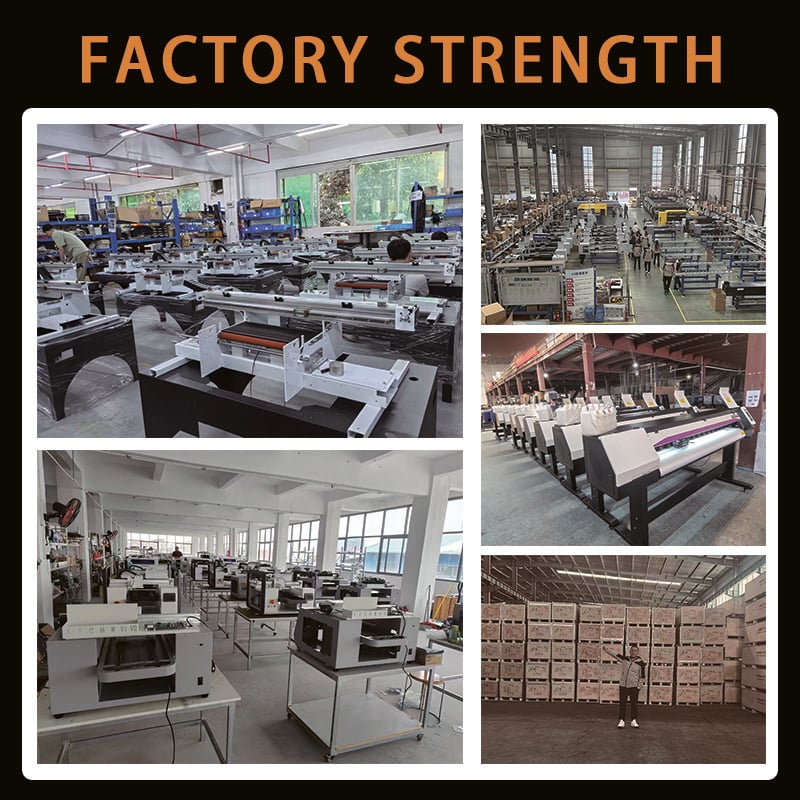

Wuhan XOTO Technology Co., Ltd is a professional company focus on research, production, and distribution of inkjet printers and printer accessories. We have our own factory in Guangzhou, support OEM & ODM customization.

Our main products now include Eco solvent printers, Sublimation printer, DTF printer, UV DTF printer, Digital printer, Textile printer, Cutter plotter and Laminators.

We have 20 years experience in inkjet printers. Through years of unremitting efforts and continuous innovation, our machines have been send to more than 50 countries and nations, established long term relationship with thousands of customers.

Our Exhibitions

Cooperative Customer

Our Certification

Product Packaging

Special line logistics and transportation,timely delivery.

DELIVERY:we have close cooperatian with gaint logstic company

Q:What are the differences between a roll-flipping all-in-one machine and a regular flat-panel machine?

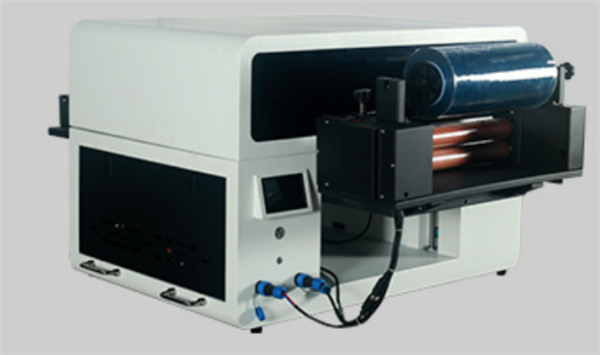

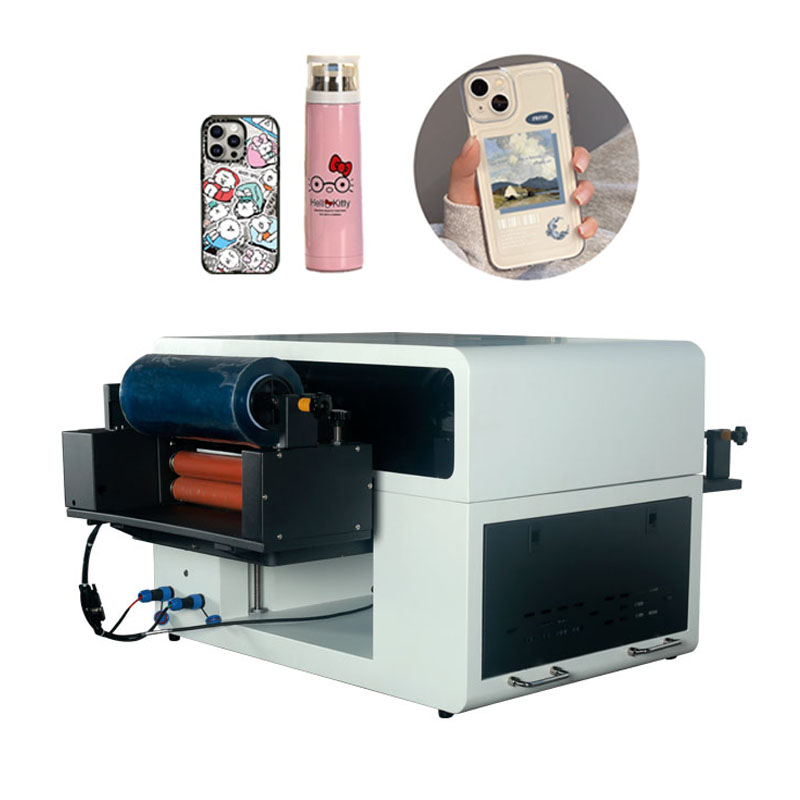

A:Traditional tablet printers are limited to printing only on rigid flat surfaces such as acrylic, glass, and wood panels. In contrast, the roll-to-flat integrated printer is equipped with not only a dedicated flatbed platform, but also a roll-to-roll feeding system, which is (often fitted with automatic alignment correction functionality. This design enables it to print on flexible rolled materials including lightbox fabrics, car stickers, and flexible films.

Q:Is there a limit on print thickness? (Especially for plates)

A:It generally accommodates thickness variations ranging from 0 to 100 mm, while some industrial-grade devices support even greater thicknesses, which (requires pre-calibrating the nozzle height. There are typically no strict thickness requirements when printing roll materials.

Q:How is a relief effect with a "three-dimensional texture" achieved when printing?

A:Using multi-layer printing technology, multiple layers of white ink are physically stacked, then coated with colored ink and varnish on the surface, which can easily create 3D relief and Braille effects.

Q:Is the material surface too smooth, causing color fading during printing?

A:For high-gloss surfaces such as glass, metal, and acrylic, a specialized UV coating must be applied to the material surface prior to printing to enhance adhesion. Ordinary materials do not require any coating and can be printed directly.

Q:How should the machine be maintained after prolonged disuse?

A:The most critical aspect is nozzle maintenance. After prolonged shutdown, you must thoroughly clean the residual ink inside the nozzle and inject a moisturizing solution. In addition, you should disconnect both the main power supply and the air supply, keep the appropriate temperature and humidity in the working environment, and prevent nozzle clogging.

Q:The hardness of coils and sheets varies; does the machine use the same type of ink?

A:Neutral ink is typically used for printing. Hard plates require rigid ink to prevent scratching, while flexible rolls need soft ink to avoid cracking during folding or stretching. Roll flattening machines generally use neutral ink to meet both requirements. If you consistently print only one type of material, switching to a specialized ink is recommended.

Q:Is switching from a print tablet to a roll material complex? How long does it take?

A:You can master the operation in just 3–5 minutes. To switch modes, simply disassemble or fold the front and rear extension platforms, insert the roll into the roll-to-roll tension system, and select your desired mode with a single click in the control software.

Q:When printing on plastic or flexible film, issues such as ink bleeding and thread formation often occur. How can these problems be resolved?

A:This phenomenon is primarily caused by static electricity. Plastic sheets and coils are highly susceptible to generating static electricity through friction during transportation. To eliminate static interference, equipment must be fitted with industrial-grade electrostatic discharge rods (ion bars), and the machine's ground connection must be properly secured before printing.
